MASS AIR FLOW METER INSPECTION

PROCEDURE

  1. INSPECT MASS AIR FLOW METER SUB-ASSEMBLY

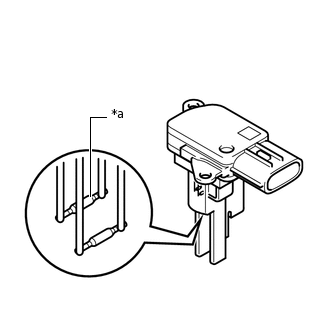

    1. A190679C27

      *a

      Platinum Hot Wire (Heater)

      Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter sub-assembly as shown in the illustration.

      OK

      There is no foreign matter.

    2. Check the intake air temperature sensor (built into the mass air flow meter sub-assembly).

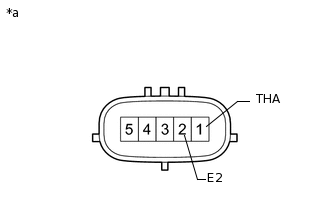

      1. A196153C03

        *a

        Component without harness connected

        (Mass Air Flow Meter Sub-assembly)

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 (THA) - 2 (E2)

        -20°C (-4°F)

        13.6 to 18.4 kΩ

        20°C (68°F)

        2.21 to 2.69 kΩ

        60°C (140°F)

        0.49 to 0.67 kΩ

        If the result is not as specified, replace the mass air flow meter sub-assembly.
