EXHAUST MANIFOLD REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE UNDER COVER (for Full Cover Type)

    Click hereClick hereClick hereClick here

  2. REMOVE FRONT NO. 3 ENGINE UNDER COVER (for Full Cover Type)

    Click hereClick hereClick hereClick here

  3. REMOVE AIR FUEL RATIO SENSOR

    Click here

  4. REMOVE WIRE HARNESS CLAMP BRACKET

    Click hereClick hereClick hereClick here

  5. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    1. A205148

      Remove the 4 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold.

  6. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    Click here

  7. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

    1. A212408

      Disconnect the heated oxygen sensor connector and wire harness clamp.

    2. A296083

      Remove the 4 bolts and 4 compression springs.

    3. Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.

    4. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Front and Rear Catalyst) and exhaust manifold.

  8. REMOVE MANIFOLD STAY

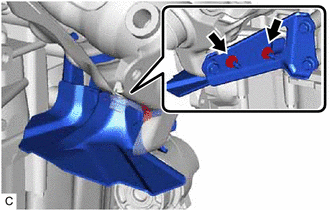

    1. A308414

      w/ Drive shaft heat insulator sub-assembly:

      1. Remove the 2 nuts and drive shaft heat insulator sub-assembly.

    2. A238477

      Remove the 3 bolts and manifold stay.

  9. REMOVE EXHAUST MANIFOLD

    1. A183843

      Remove the 5 nuts and exhaust manifold.

    2. Remove the exhaust manifold to head gasket.

  10. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    1. A205150

      Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold.
