HEADLIGHT ASSEMBLY COMPONENTS

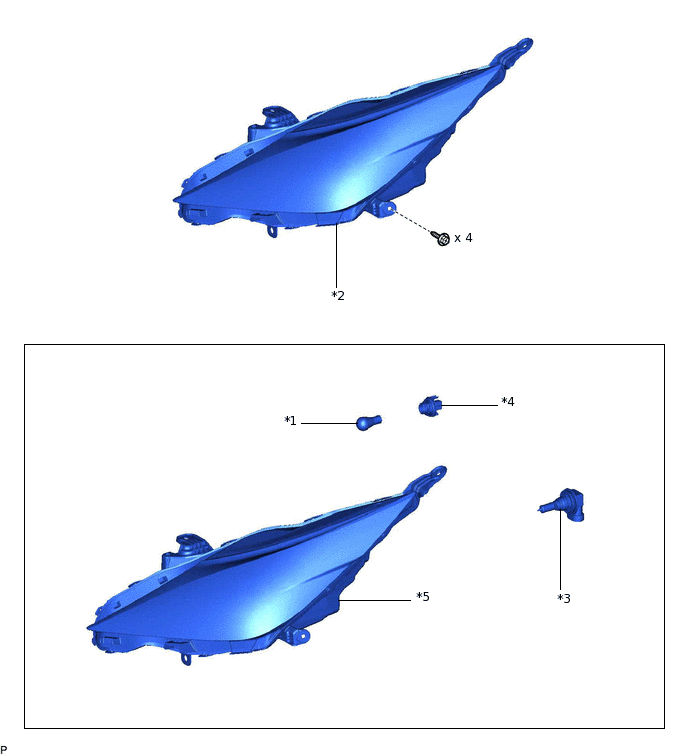

ILLUSTRATION

E290964C01

*1

FRONT TURN SIGNAL LIGHT BULB

*2

HEADLIGHT ASSEMBLY

*3

NO. 1 HEADLIGHT BULB

*4

FRONT TURN SIGNAL LIGHT SOCKET

*5

HEADLIGHT UNIT

-

-

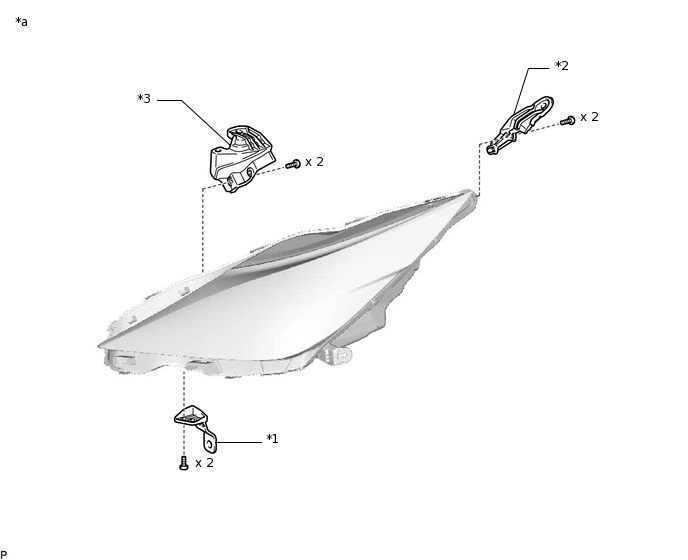

ILLUSTRATION

E297188C01

*a

Bracket for Repair

-

-

*1

LOWER HEADLIGHT PROTECTOR RETAINER

*2

UPPER HEADLIGHT PROTECTOR RETAINER

*3

UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER

-

-
