INNER REAR VIEW MIRROR INSTALLATION

PROCEDURE

  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

    1. Using a T20 ''TORX'' socket wrench, install the inner rear view mirror assembly with the screw.

    2. Connect the connector.

      1.5 N*m

      15 kgf*cm

      13 in.*lbf

  2. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ Pre-crash Safety System)

    1. Using a T20 ''TORX'' socket wrench, install the inner rear view mirror assembly with the screw.

      1.5 N*m

      15 kgf*cm

      13 in.*lbf

    2. Attach the clamp.

    3. Connect the connector.

  3. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

    1. Attach the claw and temporarily install the inner rear view mirror stay holder cover.

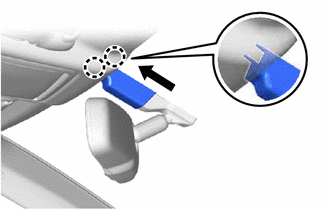

    2. B437867

      Slide the inner rear view mirror stay holder cover in the direction indicated by the arrow shown in the illustration and attach the 2 claws to install the cover.

  4. INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-crash Safety System)

    Click here

  5. INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-crash Safety System)

    Click here
