SEAT HEATER SWITCH(for Front Side) INSPECTION

PROCEDURE


  1. INSPECT REFRESHING SEAT SWITCH (for Front Side)

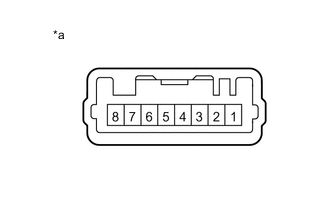

    1. A01RFKHC02
      *a

      Component without harness connected

      (Refreshing Seat Switch (for Front Side))

      Apply battery voltage and check the operation of the switch according to the table below.

      OK
      Battery Connection Condition Specified Condition

      Battery positive (+) → Terminal 3

      Battery negative (-) → Terminal 5

      		 Always Illumination comes on

      If the result is not as specified, replace the refreshing seat switch (for front side).
