LUGGAGE SPEAKER REMOVAL

PROCEDURE

1. REMOVE REAR DOOR SCUFF PLATE RH

   Click here

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

   Click here

3. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

   Click here

4. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

5. REMOVE DECK BOARD ASSEMBLY

   Click here

6. REMOVE REAR NO. 2 FLOOR BOARD

   Click here

7. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

   Click here

8. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

   Click here

9. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

   Click here

10. REMOVE REAR SEAT ASSEMBLY

    Click here

11. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Click here

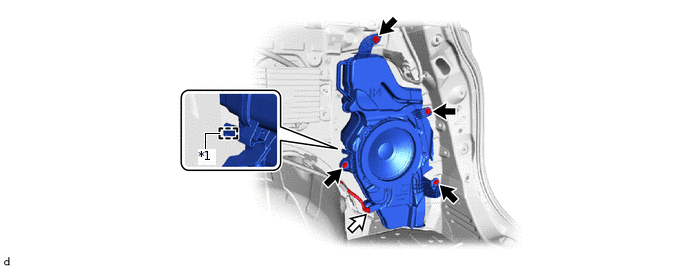

13. REMOVE WOOFER BOX SPEAKER ASSEMBLY

    1. Disconnect the connector.



       *1	Guide	-	-
       	Bolt		Connector

    2. Remove the 4 bolts.

    3. Detach the guide and remove the woofer box speaker assembly.
