COMBINATION METER(for Sedan) REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  3. REMOVE NO. 1 METER HOOD CLUSTER

    Click here

  4. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click here

  5. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Click here

  7. REMOVE COMBINATION METER ASSEMBLY

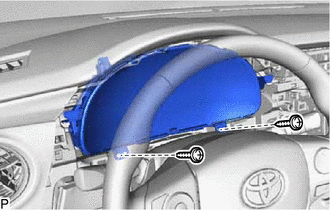

    1. E346298

      Remove the 2 screws.

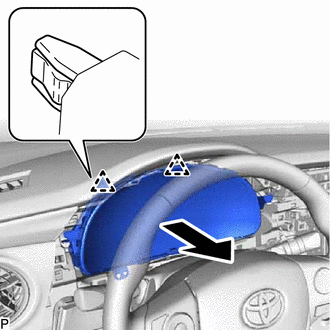

    2. E346299

      Disengage the 2 clips as shown in the illustration.

    3. Disconnect each connector and remove the combination meter assembly.
