EXHAUST PIPE COMPONENTS

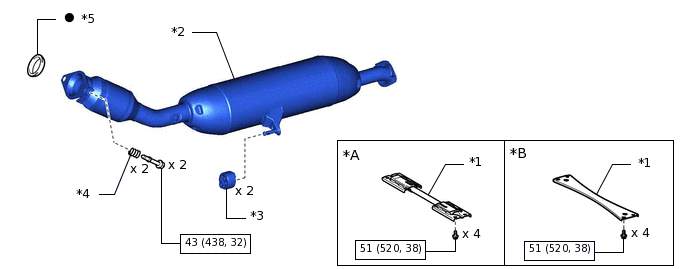

ILLUSTRATION

A304981C01

*A

Type A

*B

Type B

*1

FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

*2

FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

*3

EXHAUST PIPE SUPPORT

*4

COMPRESSION SPRING

*5

GASKET

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

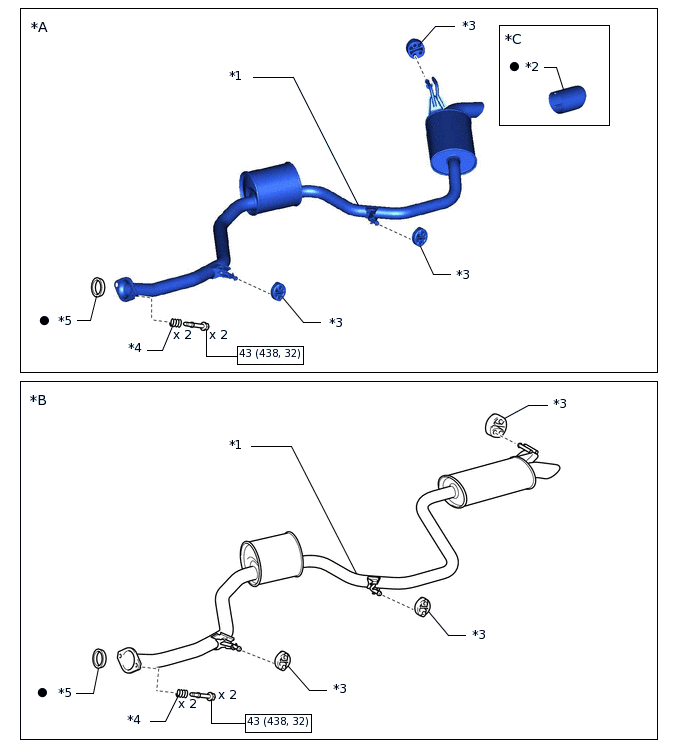

ILLUSTRATION

A304982C01

*A

for Hatchback

*B

for Wagon

*C

w/ Tail Exhaust Pipe Baffle

-

-

*1

TAIL EXHAUST PIPE ASSEMBLY

*2

TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

*3

EXHAUST PIPE SUPPORT

*4

COMPRESSION SPRING

*5

GASKET

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

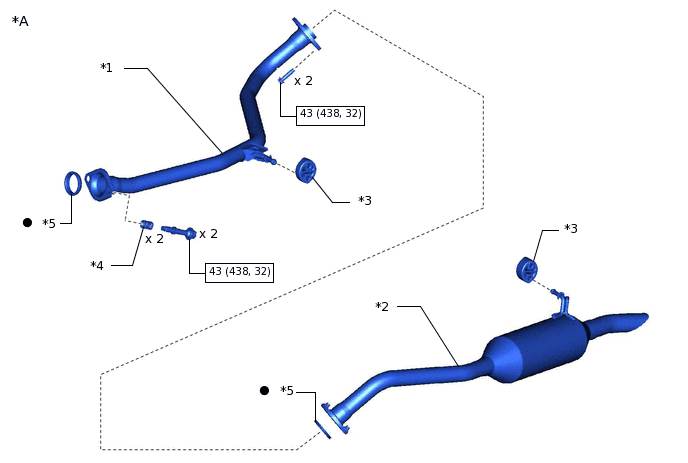

ILLUSTRATION

A304983C01

*A

for Sedan

-

-

*1

CENTER EXHAUST PIPE ASSEMBLY

*2

TAIL EXHAUST PIPE ASSEMBLY

*3

EXHAUST PIPE SUPPORT

*4

COMPRESSION SPRING

*5

GASKET

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
