CENTER AIRBAG SENSOR ASSEMBLY REMOVAL

PROCEDURE

  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    Click hereClick here

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click hereClick here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  3. REMOVE REAR CONSOLE BOX ASSEMBLY

    Click here

  4. REMOVE FRONT CONSOLE BOX

    Click here

  5. REMOVE AIRBAG SENSOR ASSEMBLY

    1. Check that the ignition switch is off.

    2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Remove the 2 clips and turn back the carpet.

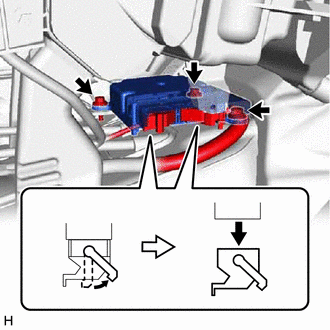

    4. B369885

      Disconnect the connectors from the airbag sensor assembly as shown in the illustration.

      Note:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

    5. Remove the 3 bolts and airbag sensor assembly.
