EGR VALVE COMPONENTS

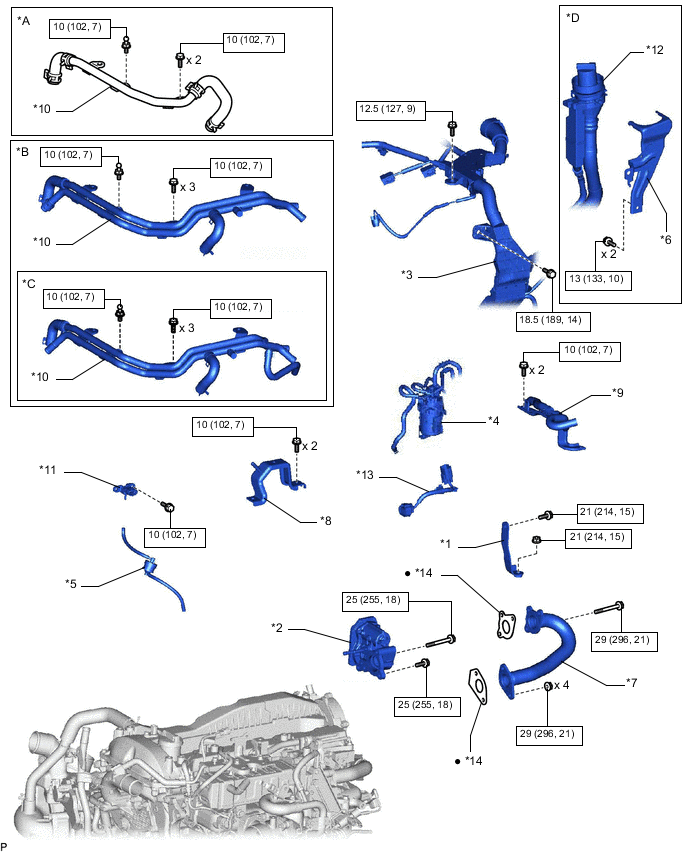

ILLUSTRATION
| *A | w/o Heater | *B | w/ Heater |
| *C | w/ DPF | *D | w/ Urea SCR System |
| *1 | EGR VALVE BRACKET | *2 | ELECTRIC EGR CONTROL VALVE ASSEMBLY |
| *3 | ENGINE WIRE | *4 | FUEL FILTER ASSEMBLY |
| *5 | GAS FILTER | *6 | NO. 1 UREA TANK FILLER PIPE SUPPORT |
| *7 | NO. 2 EGR PIPE | *8 | NO. 2 ENGINE COVER BRACKET |
| *9 | NO. 2 HOSE TO HOSE TUBE | *10 | NO. 2 WATER BY-PASS PIPE |
| *11 | TURBO PRESSURE SENSOR | *12 | UREA TANK FILLER PIPE ASSEMBLY |
| *13 | CONNECTING WIRE | *14 | GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

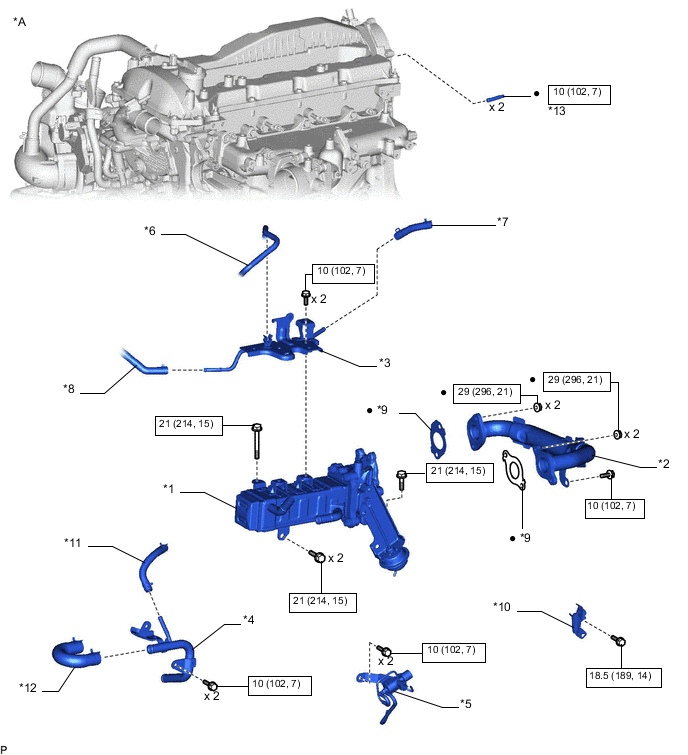

ILLUSTRATION
| *A | w/ DPF | - | - |
| *1 | EGR PIPE WITH COOLER SUB-ASSEMBLY | *2 | NO. 1 EGR COOLER AND NO. 2 EGR VALVE ASSEMBLY |
| *3 | NO. 3 WATER BY-PASS PIPE SUB-ASSEMBLY | *4 | NO. 4 WATER BY-PASS PIPE SUB-ASSEMBLY |
| *5 | VACUUM CONTROL VALVE SET | *6 | NO. 4 FUEL HOSE |
| *7 | NO. 9 WATER BY-PASS HOSE | *8 | NO. 8 WATER BY-PASS HOSE |
| *9 | GASKET | *10 | ENGINE WIRE BRACKET |
| *11 | WATER HOSE | *12 | NO. 7 WATER BY-PASS HOSE |
| *13 | NO. 17 WATER BY-PASS HOSE | *14 | STUD BOLT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

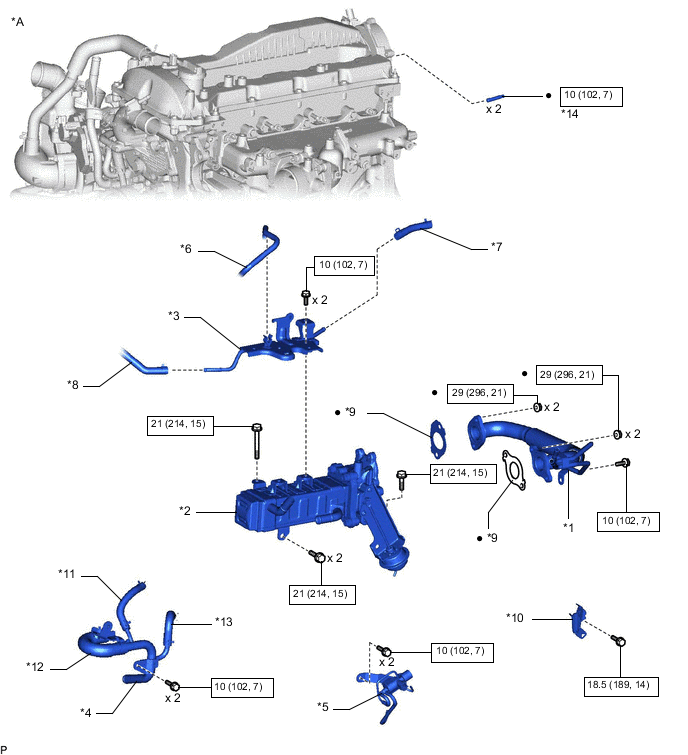

ILLUSTRATION
| *A | w/o DPF | - | - |
| *1 | NO. 1 EGR COOLER AND NO. 2 EGR VALVE ASSEMBLY | *2 | NO. 1 EGR PIPE SUB-ASSEMBLY |
| *3 | NO. 3 WATER BY-PASS PIPE SUB-ASSEMBLY | *4 | NO. 4 WATER BY-PASS PIPE SUB-ASSEMBLY |
| *5 | VACUUM CONTROL VALVE SET | *6 | NO. 4 FUEL HOSE |
| *7 | NO. 9 WATER BY-PASS HOSE | *8 | NO. 8 WATER BY-PASS HOSE |
| *9 | GASKET | *10 | ENGINE WIRE BRACKET |
| *11 | WATER HOSE | *12 | NO. 7 WATER BY-PASS HOSE |
| *13 | STUD BOLT | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

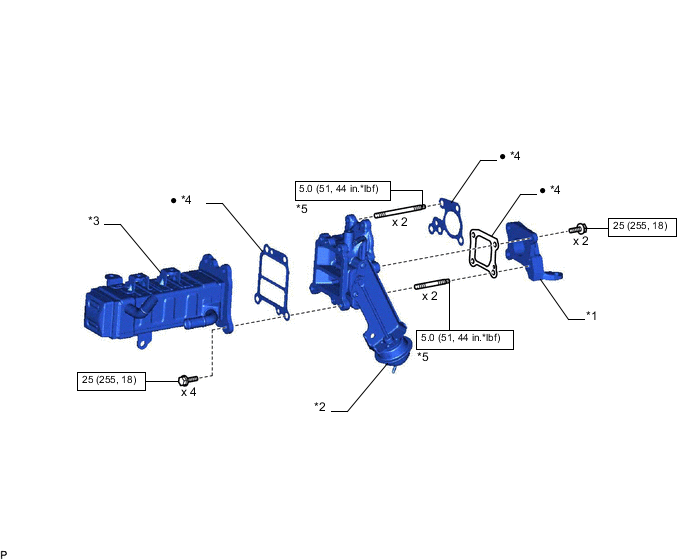

ILLUSTRATION
| *1 | EGR VALVE ADAPTER | *2 | NO. 2 EGR VALVE ASSEMBLY |
| *3 | NO. 1 EGR COOLER | *4 | GASKET |
| *5 | STUD BOLT | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
