FRONT SEAT ASSEMBLY(for Manual Seat) COMPONENTS
ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
AUXILIARY BATTERY NEGATIVE TERMINAL |
- |
- |
ILLUSTRATION
*1 |
FRONT INNER SEAT TRACK BRACKET COVER LH |
*2 |
FRONT OUTER SEAT TRACK BRACKET COVER LH |
*3 |
FRONT SEAT ASSEMBLY LH |
*4 |
FRONT SEAT HEADREST ASSEMBLY |
*5 |
REAR INNER SEAT TRACK BRACKET COVER LH |
*6 |
REAR OUTER SEAT TRACK BRACKET COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

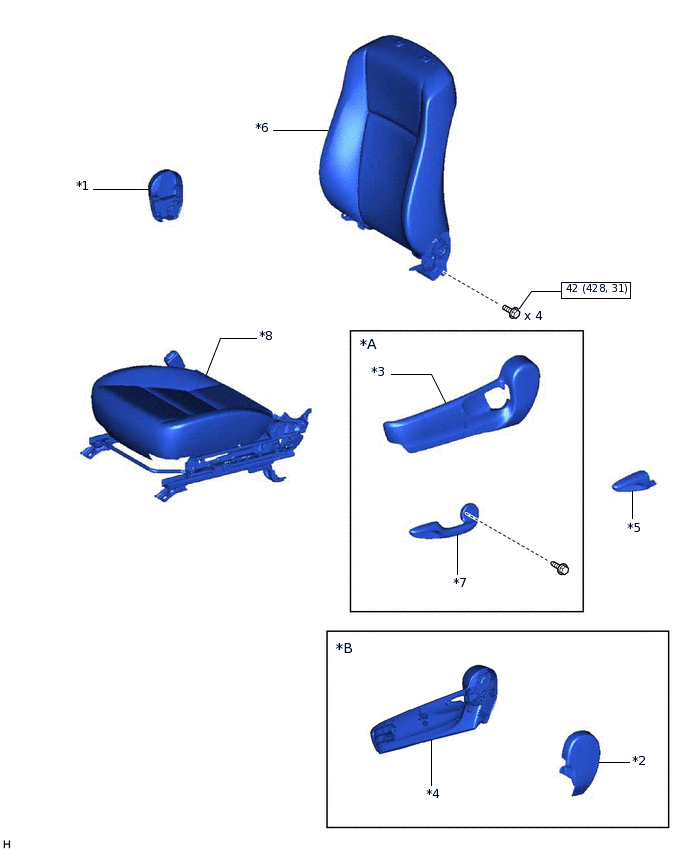

ILLUSTRATION
*A |
for Driver Side |
*B |
for Front Passenger Side |
*1 |
FRONT INNER SEAT CUSHION SHIELD LH |
*2 |
FRONT INNER SEAT CUSHION SHIELD RH |
*3 |
FRONT SEAT CUSHION SHIELD LH |
*4 |
FRONT SEAT CUSHION SHIELD RH |
*5 |
RECLINING ADJUSTER RELEASE HANDLE LH |
*6 |
SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
*7 |
VERTICAL ADJUSTING HANDLE LH |
*8 |
SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

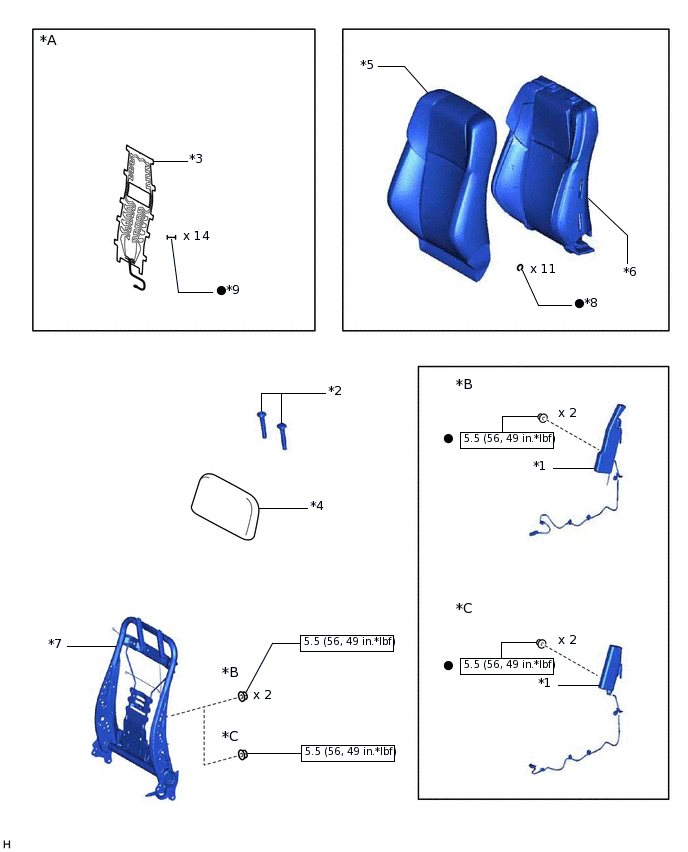

ILLUSTRATION
*A |
w/ Seat Heater System |
*B |
for Dual Type |
*C |
for Single Type |
- |
- |
*1 |
FRONT SEAT AIRBAG ASSEMBLY LH |
*2 |
FRONT SEAT HEADREST SUPPORT |
*3 |
FRONT SEATBACK HEATER ASSEMBLY LH |
*4 |
SEATBACK FELT |
*5 |
SEPARATE TYPE FRONT SEATBACK COVER |
*6 |
SEPARATE TYPE FRONT SEATBACK PAD |
*7 |
SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY LH |
*8 |
HOG RING |
*9 |
TACK PIN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

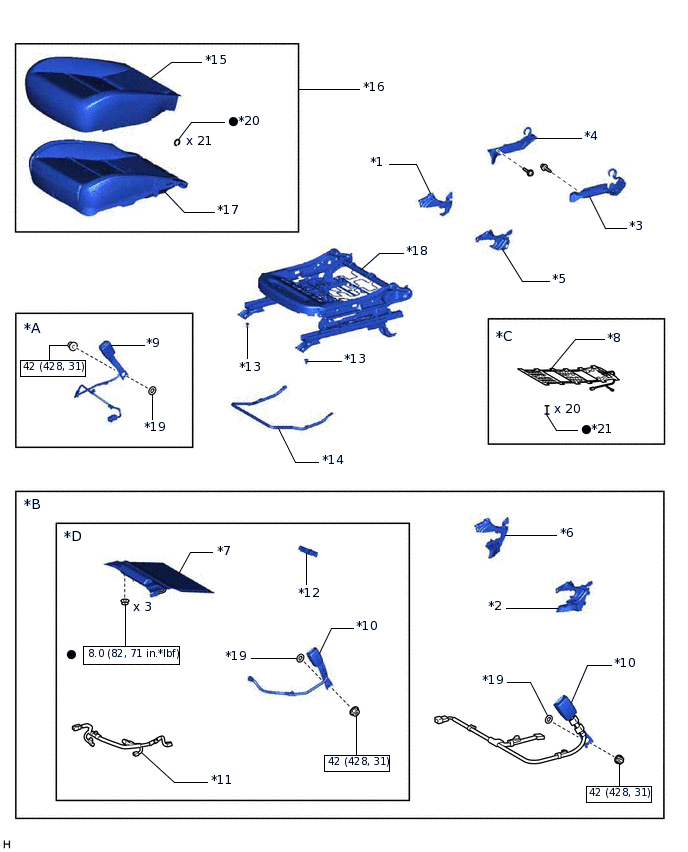

ILLUSTRATION
*A |
for Driver Side |
*B |
for Front Passenger Side |
*C |
w/ Seat Heater System |
*D |
w/ Occupant Classification System |
*1 |
FRONT INNER SEAT CUSHION EDGE PROTECTOR LH |
*2 |
FRONT INNER SEAT CUSHION EDGE PROTECTOR RH |
*3 |
FRONT LOWER SEAT CUSHION SHIELD LH |
*4 |
FRONT LOWER SEAT CUSHION SHIELD RH |
*5 |
FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH |
*6 |
FRONT OUTER SEAT CUSHION EDGE PROTECTOR RH |
*7 |
FRONT SEAT AIRBAG SUB-ASSEMBLY RH |
*8 |
FRONT SEAT CUSHION HEATER ASSEMBLY LH |
*9 |
FRONT SEAT INNER BELT ASSEMBLY LH |
*10 |
FRONT SEAT INNER BELT ASSEMBLY RH |
*11 |
FRONT SEAT WIRE RH |
*12 |
OCCUPANT DETECTION ECU |
*13 |
SEAT ADJUSTER COVER CAP |
*14 |
SEAT TRACK ADJUSTING HANDLE |
*15 |
SEPARATE TYPE FRONT SEAT CUSHION COVER |
*16 |
SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
*17 |
SEPARATE TYPE FRONT SEAT CUSHION PAD |
*18 |
SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY LH |
*19 |
SEAT BELT ANCHOR PLATE |
*20 |
HOG RING |
*21 |
TACK PIN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
