OUTER REAR VIEW MIRROR GLASS REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE OUTER MIRROR LH


    1. Push the upper part of the mirror surface and tilt it.

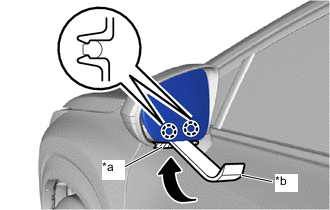

    2. B0058CCC01
      *a Protective Tape
      *b Moulding Remover

      Apply protective tape to the areas shown in the illustration.

    3. Using a moulding remover, detach the 2 claws at the lower part of the outer rear view mirror LH.

    4. Push the lower part of the mirror surface and tilt it.

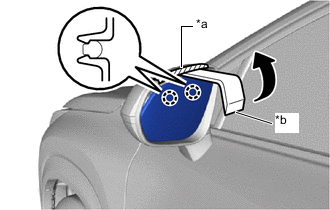

    5. B0057PIC01
      *a Protective Tape
      *b Moulding Remover

      Apply protective tape to the areas shown in the illustration.

    6. Using a moulding remover, detach the 2 claws at the upper part of the outer rear view mirror LH, and separate the outer mirror LH.

    7. w/ Mirror Heater:

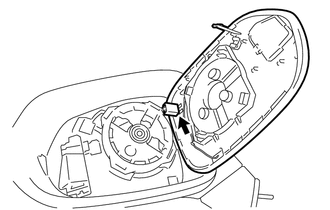

      1. B0058V1

        Disconnect the connector and remove the outer mirror LH.

    8. w/ EC Mirror:

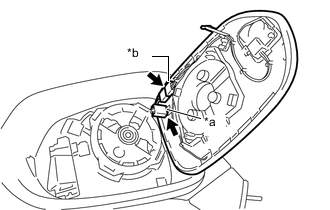

      1. B0059HFC01
        *a Connector(a)
        *b Connector(b)

        w/ Mirror Heater:

        Disconnect the connector(a).

      2. Disconnect the connector(b) and remove the outer mirror LH.
