EXHAUST PIPE REMOVAL

PROCEDURE

  1. REMOVE HEATED OXYGEN SENSOR

    Click here

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY

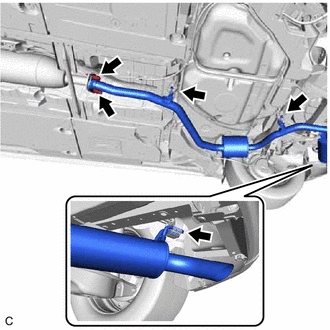

    1. A292337

      Remove the 2 bolts and 2 compression springs.

    2. Remove the tail exhaust pipe assembly from the 3 exhaust pipe supports.

      Note:

      Wrap the tail exhaust pipe baffle sub-assembly with a piece of cloth to keep it from damaging the rear bumper.

    3. Remove the gasket from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).

  3. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    1. A295048C01

      *A

      Type A

      *B

      Type B

      Remove the 4 bolts and front center floor brace sub-assembly.

  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

    1. A296085

      Remove the 2 bolts and 2 compression springs.

    2. Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.

    3. Remove the gasket from the exhaust manifold.

  5. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

    1. A287351C03

      *a

      Plastic Hammer

      Remove the tail exhaust pipe baffle sub-assembly.
