SRS SEAT CUSHION AIRBAG ASSEMBLY COMPONENTS

*A	w/o Spare Tire, for Compact Spare Tire	*B	for Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	AUXILIARY BATTERY NEGATIVE TERMINAL	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

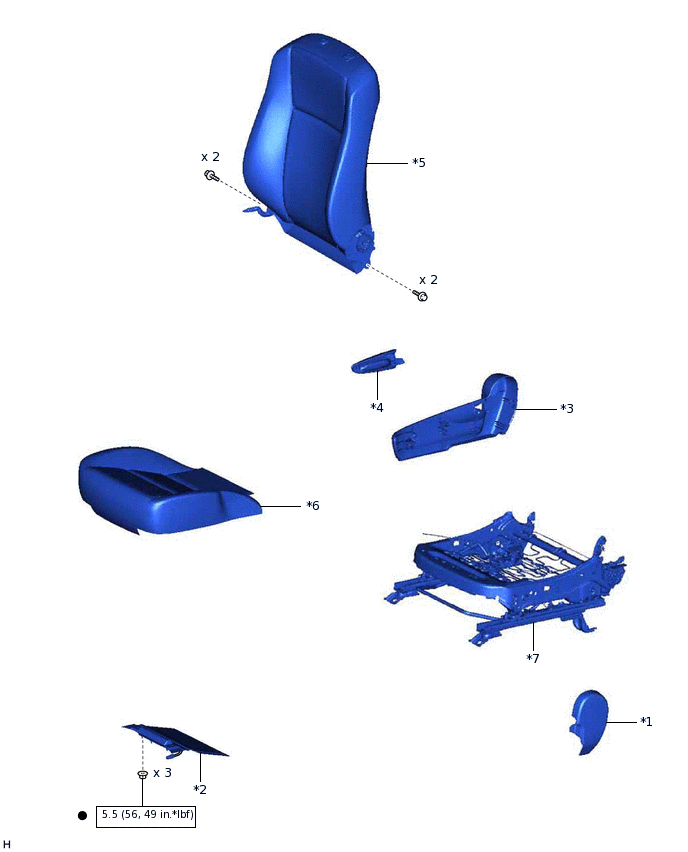

*1	FRONT INNER SEAT CUSHION SHIELD RH	*2	FRONT SEAT AIRBAG SUB-ASSEMBLY RH
*3	FRONT SEAT CUSHION SHIELD RH	*4	RECLINING ADJUSTER RELEASE HANDLE RH
*5	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*6	SEPARATE TYPE SEAT CUSHION COVER WITH PAD
*7	SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	●	Non-reusable part

*1

FRONT INNER SEAT CUSHION SHIELD RH

*2

FRONT SEAT AIRBAG SUB-ASSEMBLY RH

*3

FRONT SEAT CUSHION SHIELD RH

*4

RECLINING ADJUSTER RELEASE HANDLE RH

*5

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*6

SEPARATE TYPE SEAT CUSHION COVER WITH PAD

*7

SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

-

N*m (kgf*cm, ft.*lbf) : Specified torque

●

Non-reusable part
