WASHER NOZZLE ADJUSTMENT

PROCEDURE

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY (w/o Heater)

    Click here

  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY (w/o Heater)

    1. Select a washer nozzle sub-assembly so that the contact area is within the standard. Replace the washer nozzle sub-assembly with the selected one.

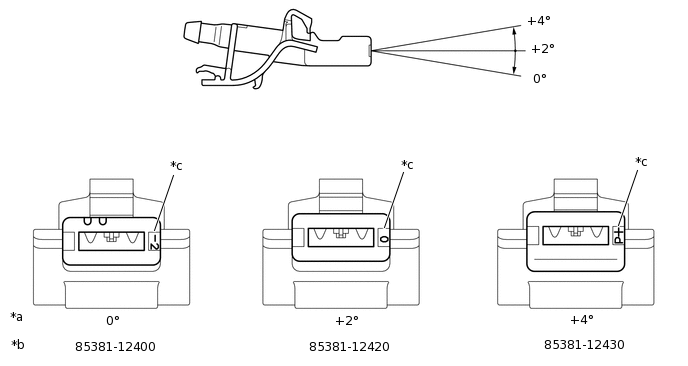

      E286011C01

      *a

      Washer Fluid Spray Angle

      *b

      Part Number

      *c

      Identification Mark

      -

      -

  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY (w/o Heater)

    Click here
