AIRBAG SYSTEM(w/ Occupant Classification System) PARTS LOCATION

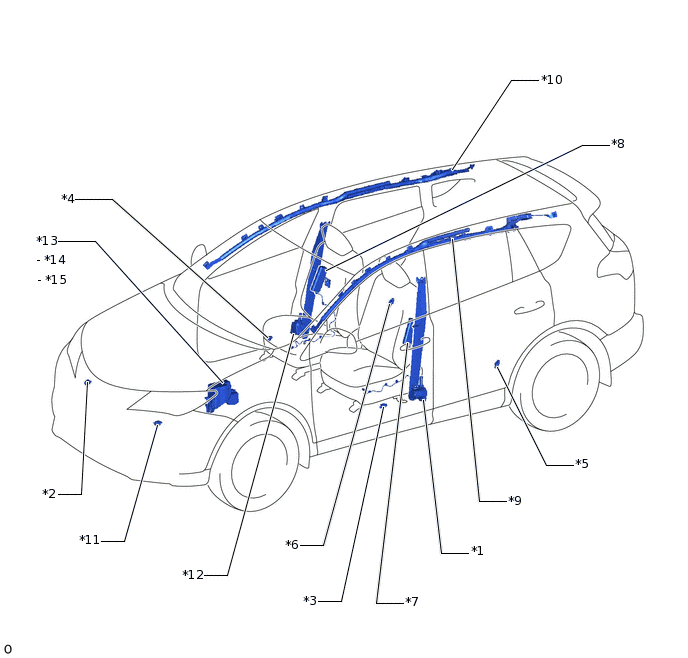

*1	FRONT SEAT OUTER BELT ASSEMBLY LH	*2	FRONT AIRBAG SENSOR RH
*3	DOOR SIDE AIRBAG SENSOR LH	*4	DOOR SIDE AIRBAG SENSOR RH
*5	REAR AIRBAG SENSOR LH	*6	REAR AIRBAG SENSOR RH
*7	FRONT SEAT AIRBAG ASSEMBLY LH	*8	FRONT SEAT AIRBAG ASSEMBLY RH
*9	CURTAIN SHIELD AIRBAG ASSEMBLY LH	*10	CURTAIN SHIELD AIRBAG ASSEMBLY RH
*11	FRONT AIRBAG SENSOR LH	*12	FRONT SEAT OUTER BELT ASSEMBLY RH
*13	NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY	*14	ECU-B NO.1 FUSE
*15	ECU-B NO.2 FUSE	-	-

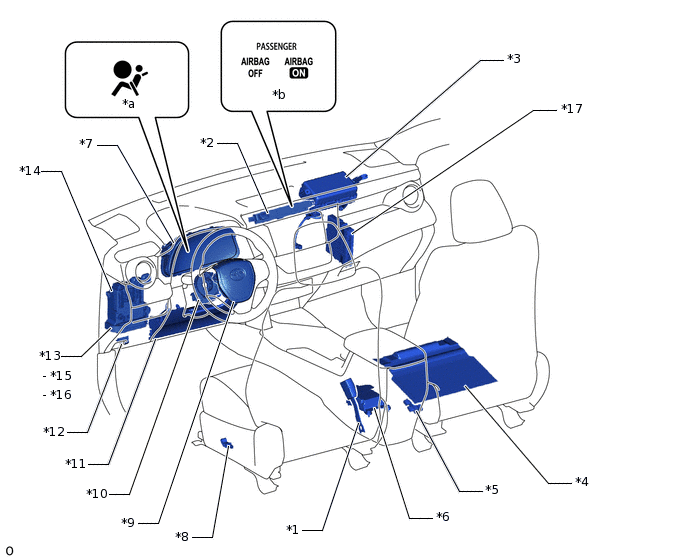

*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	TELLTALE LIGHT ASSEMBLY
*3	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	*4	FRONT SEAT AIRBAG SUB-ASSEMBLY
*5	OCCUPANT DETECTION ECU	*6	AIRBAG SENSOR ASSEMBLY
*7	COMBINATION METER ASSEMBLY	*8	SEAT POSITION AIRBAG SENSOR
*9	HORN BUTTON ASSEMBLY	*10	SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
*11	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	*12	DLC3
*13	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	*14	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*15	METER FUSE	*16	A/B FUSE
*17	HYBRID VEHICLE CONTROL ECU ASSEMBLY	-	-
*a	SRS WARNING LIGHT	*b	PASSENGER AIRBAG ON/OFF INDICATOR

*1

FRONT SEAT INNER BELT ASSEMBLY LH

*2

TELLTALE LIGHT ASSEMBLY

*3

INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

*4

FRONT SEAT AIRBAG SUB-ASSEMBLY

*5

OCCUPANT DETECTION ECU

*6

AIRBAG SENSOR ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

SEAT POSITION AIRBAG SENSOR

*9

HORN BUTTON ASSEMBLY

*10

SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

*11

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

*12

DLC3

*13

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

*14

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*15

METER FUSE

*16

A/B FUSE

*17

HYBRID VEHICLE CONTROL ECU ASSEMBLY

-

*a

SRS WARNING LIGHT

*b

PASSENGER AIRBAG ON/OFF INDICATOR
