OUTER REAR VIEW MIRROR COMPONENTS

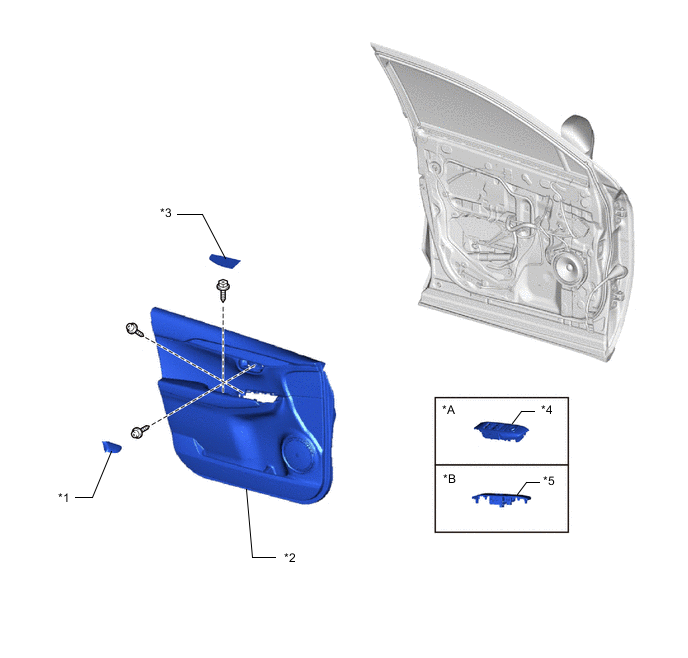

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT DOOR INSIDE HANDLE BEZEL PLUG LH | *2 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *3 | FRONT DOOR TRIM COVER LH | *4 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
| *5 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | - | - |

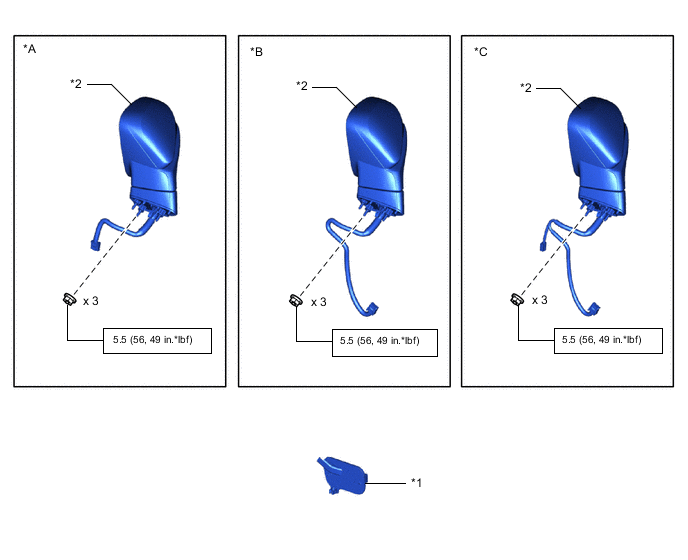

ILLUSTRATION
| *A | w/o Memory | *B | w/ Memory |
| *C | w/ Panoramic View Monitor System | - | - |
| *1 | OUTER MIRROR INSTALL HOLE COVER LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

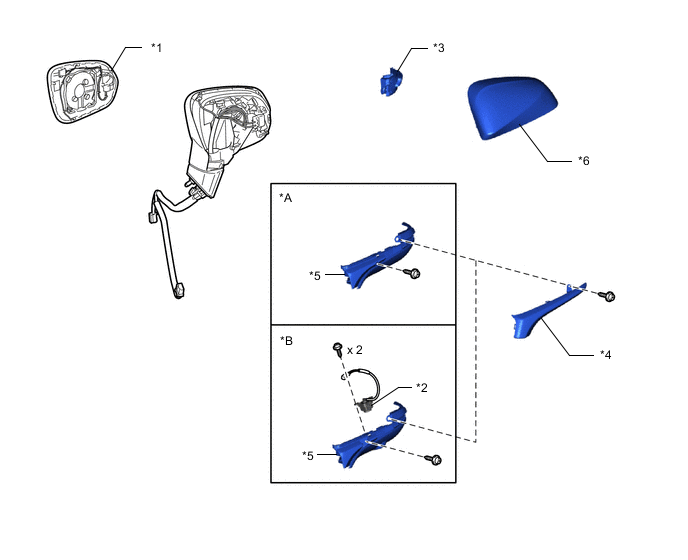

ILLUSTRATION
| *A | w/o Panoramic View Monitor System | *B | w/ Panoramic View Monitor System |
| *1 | OUTER MIRROR LH | *2 | SIDE TELEVISION CAMERA ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | OUTER MIRROR COVER LH |
| *5 | LOWER OUTER MIRROR COVER LH | *6 | UPPER OUTER MIRROR COVER LH |
