TIRE AND WHEEL SYSTEM INSPECTION

PROCEDURE

  1. INSPECT TIRE

    1. Check the tires for wear and proper inflation pressure.

      Cold Tire Inflation Pressure

      Tire Size

      Engine

      Vehicle Speed

      Front

      kPa (kgf/cm2, psi)

      Rear

      kPa (kgf/cm2, psi)

      205/60R16 92V

      1ZR-FAE

      2ZR-FAE

      Driving at less than 160 km/h

      (100 mph)

      240 (2.4, 35)

      230 (2.3, 33)

      1WW

      250 (2.5, 36)

      230 (2.3, 33)

      1ZR-FAE

      2ZR-FAE

      Driving at more than 160 km/h

      (100 mph)

      270 (2.7, 40)

      260 (2.6, 38)

      1WW

      280 (2.8, 41)

      260 (2.6, 38)

      215/55R17 94W

      1ZR-FAE

      2ZR-FAE

      Driving at less than 190 km/h

      (118 mph)

      240 (2.4, 35)

      230 (2.3, 33)

      1WW

      250 (2.5, 36)

      230 (2.3, 33)

      1ZR-FAE

      2ZR-FAE

      Driving at more than 190 km/h

      (118 mph)

      270 (2.7, 40)

      260 (2.6, 38)

      1WW

      280 (2.8, 41)

      260 (2.6, 38)

      T145/70D17 106M

      -

      Driving at less than 80 km/h

      (50 mph)

      420 (4.2, 60)
      Note:

      When towing a trailer, add 20 kPa (0.2 kgf/cm2, 3 psi) to the recommended tire pressure and drive at less than 100 km/h (62 mph).

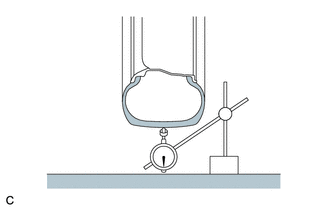

    2. C137874

      Using a dial indicator, check the runout of the tires.

      Standard tire runout

      1.0 mm (0.0394 in.) or less

  2. ROTATE TIRE

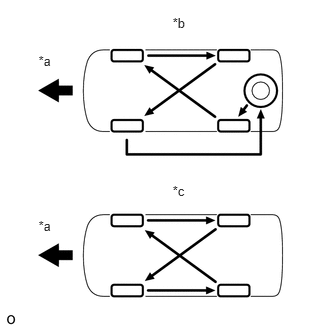

    1. C241094E01

      Rotate the tires as shown in the illustration.

      103 N*m

      1050 kgf*cm

      76 ft.*lbf

      Table 1. Text in Illustration

      *a

      Front of the Vehicle

      *b

      Vehicle wheels and spare tire wheel are same type and without tire pressure warning system

      *c

      Vehicle wheels and spare tire wheel are not same type, there is no spare tire, or vehicle has tire pressure warning system

  3. INSPECT WHEEL BALANCE

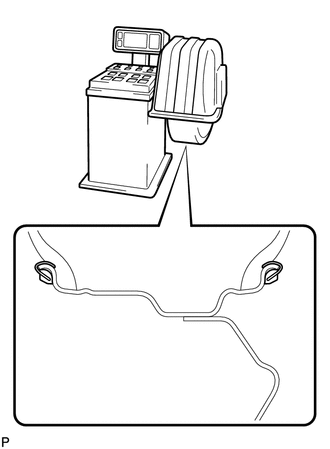

    1. C144019

      for Steel Wheel Type:

      Check and adjust the off-the-car balance.

      Standard Imbalance After Adjustment

      8.0 g (0.018 lb.) or less

      Tip:

      If necessary, check and adjust the on-the-car balance.

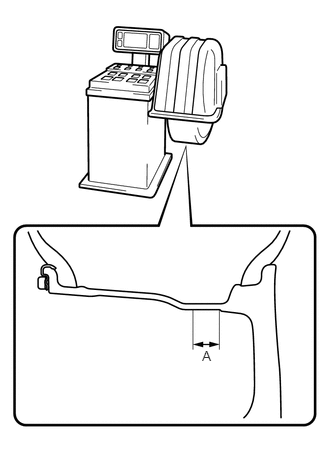

    2. C241095E01

      for Aluminum Wheel Type:

      Check and adjust the off-the-car balance.

      Standard Imbalance After Adjustment

      8.0 g (0.018 lb.) or less

      Note:

      • Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be attached.

      • Do not touch the adhesive surface of the tape.

      • Attach a sticking-type balance weight to the flat surface (A) shown in the illustration.

        Width (A)

        25 mm (0.984 in.)

      • Push the balance weight firmly so that it securely adheres to the position.

      • Do not reuse the balance weight.

      Tip:

      • The inner side balance weights should be installed by clipping them to the rim.

      • If necessary, check and adjust the on-the-car balance.

  4. INSPECT FRONT AXLE HUB BEARING

    (Click here)

  5. INSPECT REAR AXLE HUB BEARING

    (Click here)
