LANE DEPARTURE ALERT SYSTEM(w/ Steering Control) PARTS LOCATION

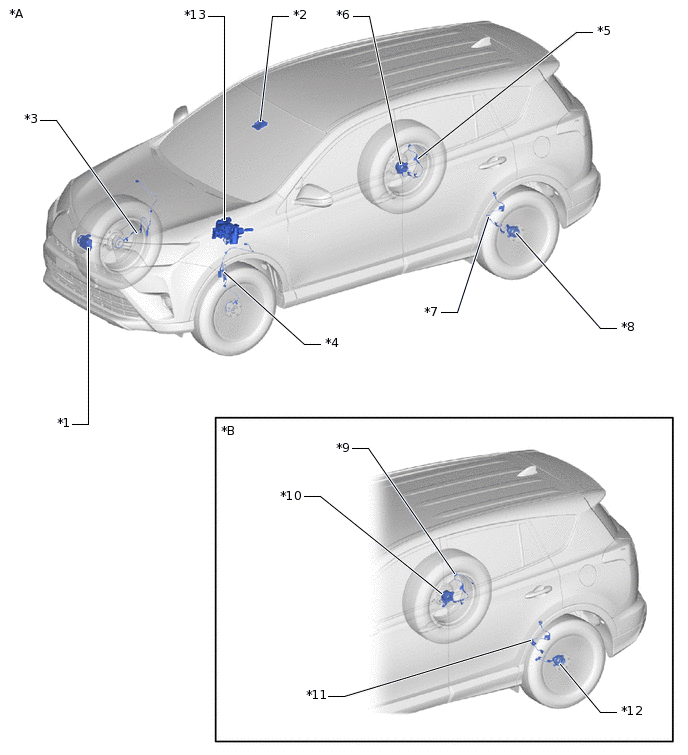

ILLUSTRATION

C351189C01

*A

for LHD

*B

for AWD

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

FORWARD RECOGNITION CAMERA

*3

FRONT SPEED SENSOR RH

*4

FRONT SPEED SENSOR LH

*5

SKID CONTROL SENSOR WIRE RH

*6

REAR SPEED SENSOR RH/REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*7

SKID CONTROL SENSOR WIRE LH

*8

REAR SPEED SENSOR LH/REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

*9

REAR SPEED SENSOR RH

*10

REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*11

REAR SPEED SENSOR LH

*12

REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

*13

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

-

-

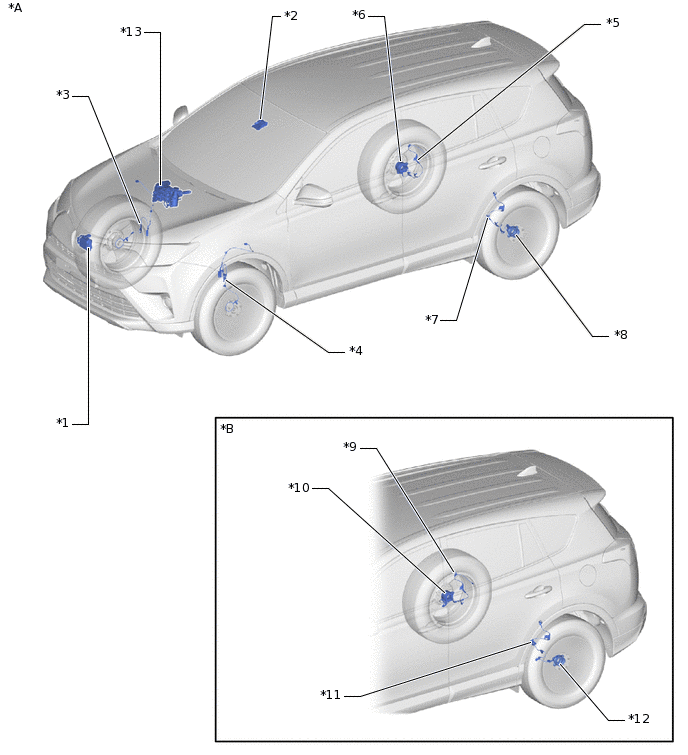

ILLUSTRATION

C351190C01

*A

for RHD

*B

for AWD

*1

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*2

FORWARD RECOGNITION CAMERA

*3

FRONT SPEED SENSOR RH

*4

FRONT SPEED SENSOR LH

*5

SKID CONTROL SENSOR WIRE RH

*6

REAR SPEED SENSOR RH/REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*7

SKID CONTROL SENSOR WIRE LH

*8

REAR SPEED SENSOR LH/REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

*9

REAR SPEED SENSOR RH

*10

REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH)

*11

REAR SPEED SENSOR LH

*12

REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH)

*13

SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

-

-

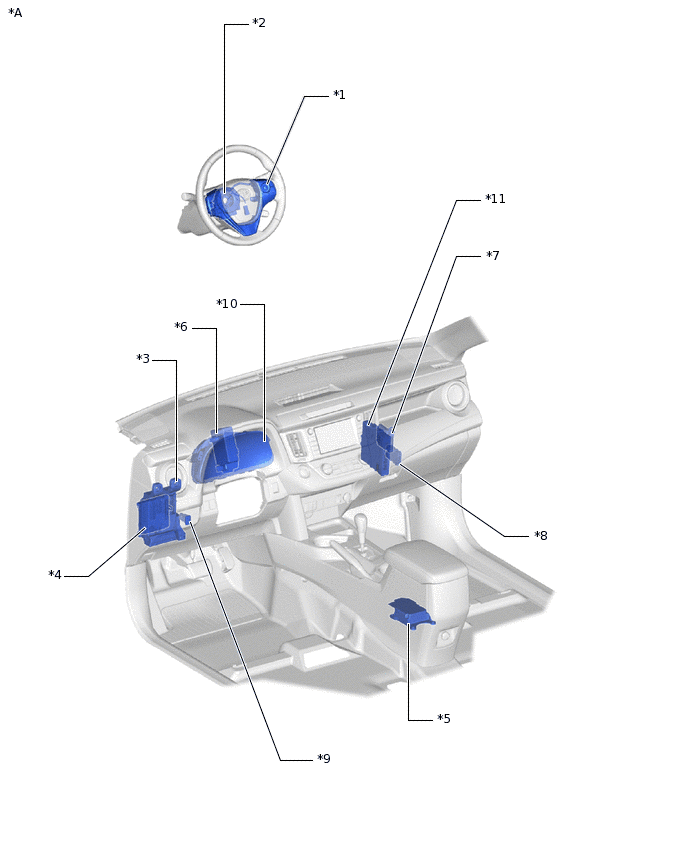

ILLUSTRATION

C349276C03

*A

for LHD

-

-

*1

STEERING PAD SWITCH ASSEMBLY

*2

STEERING ANGLE SENSOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY)

*3

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 2 FUSE

- ECU-IG NO. 3 FUSE

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY)

*6

POWER STEERING ECU ASSEMBLY

*7

DRIVING SUPPORT ECU ASSEMBLY

*8

NETWORK GATEWAY ECU

*9

LANE DEPARTURE ALERT MAIN SWITCH

*10

COMBINATION METER ASSEMBLY

*11

HYBRID VEHICLE CONTROL ECU

-

-

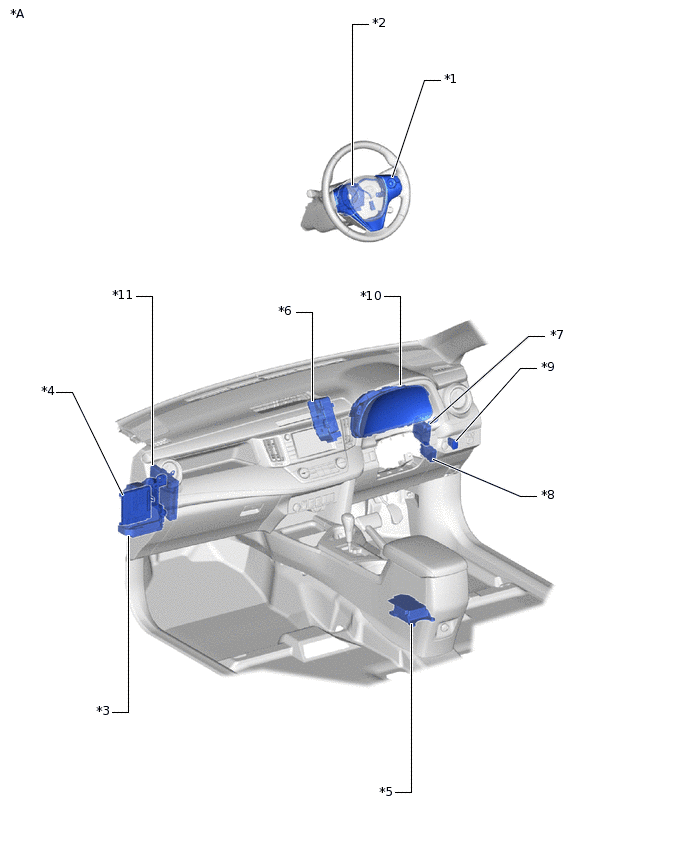

ILLUSTRATION

C349277C01

*A

for RHD

-

-

*1

STEERING PAD SWITCH ASSEMBLY

*2

STEERING ANGLE SENSOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY)

*3

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 2 FUSE

- ECU-IG NO. 3 FUSE

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY)

*6

POWER STEERING ECU ASSEMBLY

*7

DRIVING SUPPORT ECU ASSEMBLY

*8

NETWORK GATEWAY ECU

*9

LANE DEPARTURE ALERT MAIN SWITCH

*10

COMBINATION METER ASSEMBLY

*11

HYBRID VEHICLE CONTROL ECU

-

-
