FRONT BUMPER DISASSEMBLY

PROCEDURE

  1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-crash Safety System)

    Click here

  2. REMOVE ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

    Click here

  3. REMOVE NO. 1 ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

    Click here

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Click here

  5. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  6. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tip:

    Use the same procedure described for the LH side.

  7. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)

    Click here

  8. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  9. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tip:

    Use the same procedure described for the LH side.

  10. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  11. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tip:

    Use the same procedure described for the LH side.

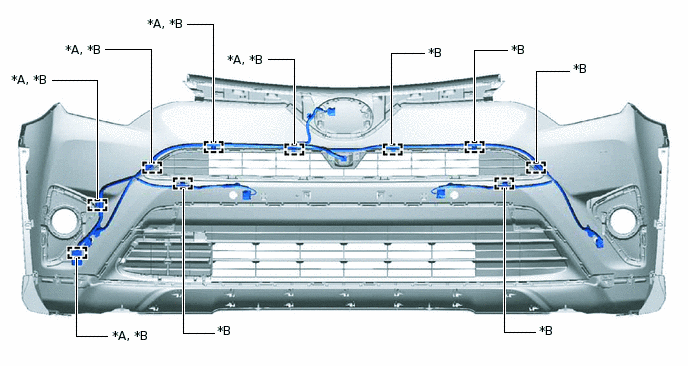

  12. REMOVE NO. 3 ENGINE ROOM WIRE

    1. Detach each clamp and remove the No. 3 engine room wire.

      B427343C01

      *A

      w/ Pre-crash Safety System

      *B

      w/ TOYOTA Parking Assist-sensor System

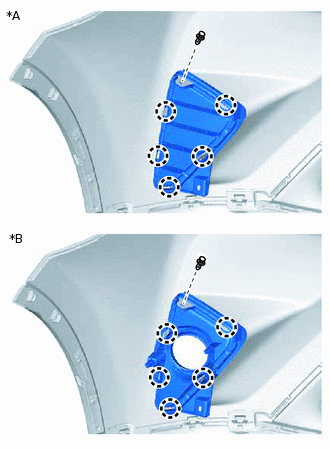

  13. REMOVE FRONT BUMPER HOLE COVER LH

    1. B432926C01

      *A

      w/o Fog Light

      *B

      w/ Fog Light

      Remove the clip.

    2. Detach the 5 claws and remove the front bumper hole cover LH.

  14. REMOVE FRONT BUMPER HOLE COVER RH

    Tip:

    Use the same procedure described for the LH side.

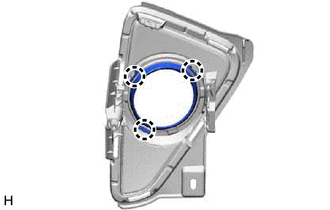

  15. REMOVE FRONT BUMPER EXTENSION MOULDING LH (w/ Fog Light)

    1. B425593

      Detach the 3 claws and remove the front bumper extension moulding LH.

  16. REMOVE FRONT BUMPER EXTENSION MOULDING RH (w/ Fog Light)

    Tip:

    Use the same procedure described for the LH side.

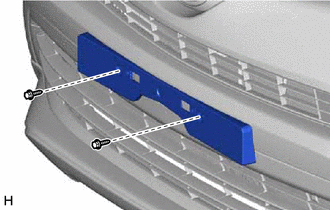

  17. REMOVE FRONT BUMPER EXTENTION MOUNTING BRACKET

    1. B427341

      Remove the 2 screws and front bumper extension mounting bracket.

  18. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    Click here

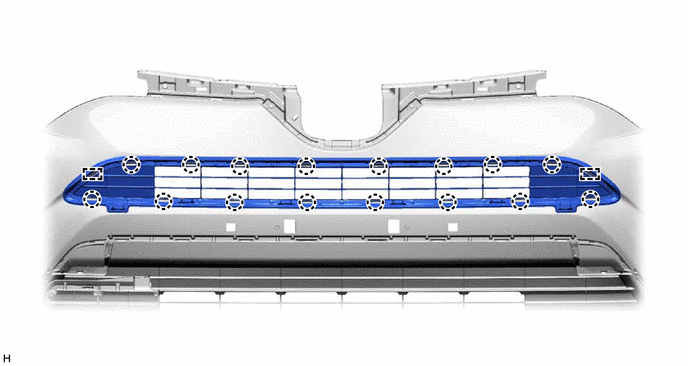

  19. REMOVE LOWER NO. 1 RADIATOR GRILLE

    1. Detach the 16 claws and 2 guides and remove the lower No. 1 radiator grille.

      B427344

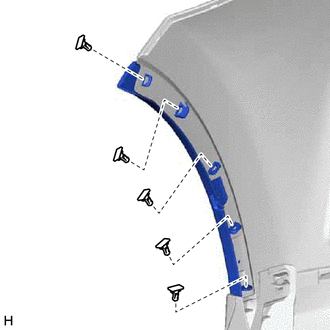

  20. REMOVE FRONT BUMPER EXTENSION LH

    1. B425596

      Remove the 5 clips and front bumper extension LH.

  21. REMOVE FRONT BUMPER EXTENSION RH

    Tip:

    Use the same procedure described for the LH side.

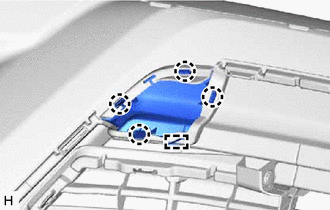

  22. REMOVE FRONT BUMPER ARM HOLE COVER LH

    1. B429955

      Detach the 4 claws and guide and remove the front bumper arm hole cover LH.

  23. REMOVE FRONT BUMPER ARM HOLE COVER RH

    Tip:

    Use the same procedure described for the LH side.

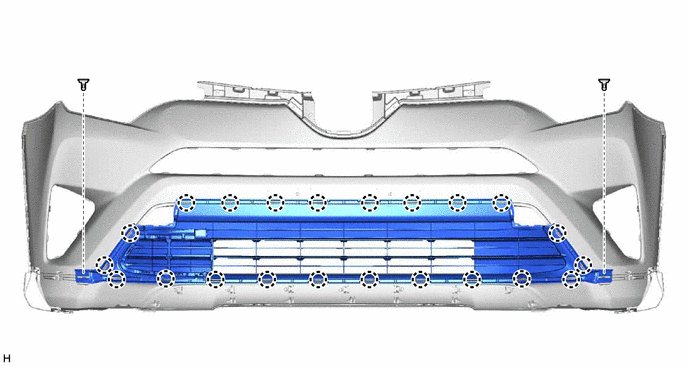

  24. REMOVE LOWER NO. 2 RADIATOR GRILLE

    1. Remove the 2 clips.

      B429956

    2. Detach the 22 claws and remove the lower No. 2 radiator grille.

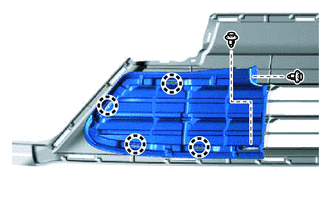

  25. REMOVE LOWER RADIATOR GRILLE LH

    1. B439998

      Remove the 2 clips.

    2. Detach the 4 claws and remove the lower radiator grille LH.

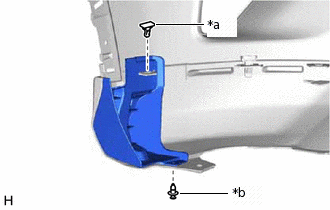

  26. REMOVE FRONT BUMPER GUARD PAD LH

    1. B425600C01

      *a

      Clip A

      *b

      Clip B

      Remove the clip labeled A.

    2. Remove the clip labeled B and front bumper guard pad LH.

  27. REMOVE FRONT BUMPER GUARD PAD RH

    Tip:

    Use the same procedure described for the LH side.

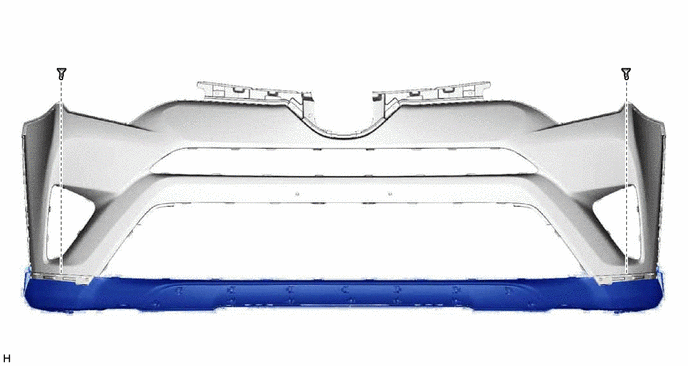

  28. REMOVE FRONT BUMPER GUARD

    1. Remove the 2 clips.

      B425620

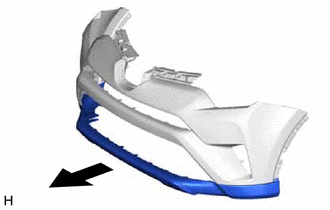

    2. B425621

      Remove the front bumper guard as shown in the illustration.

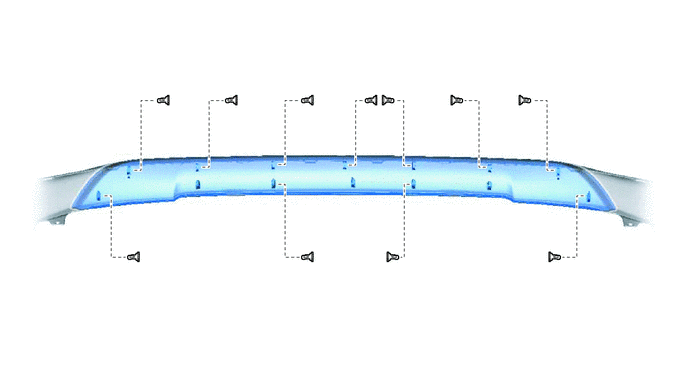

  29. REMOVE FRONT BUMPER MOULDING

    1. Remove the 11 clips and front bumper moulding.

      B425622
