BRAKE PEDAL(for LHD) COMPONENTS

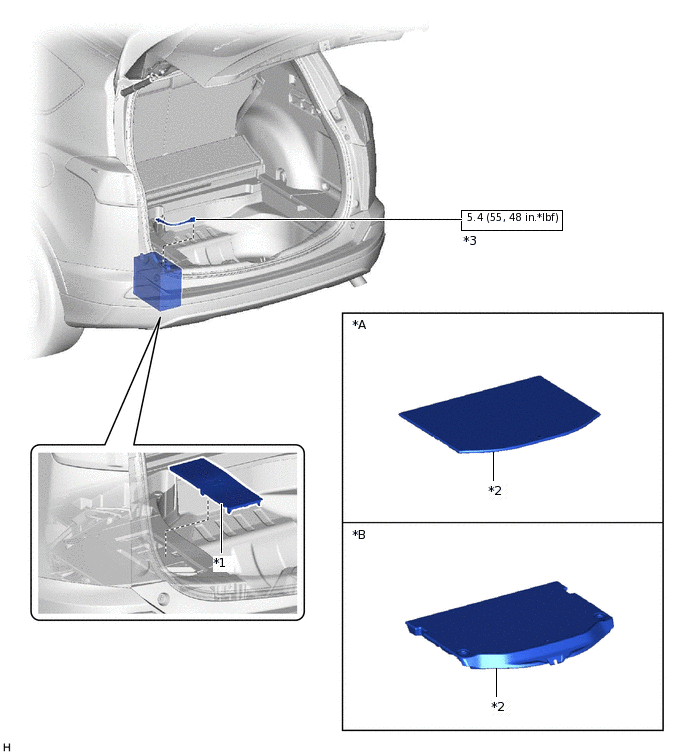

ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

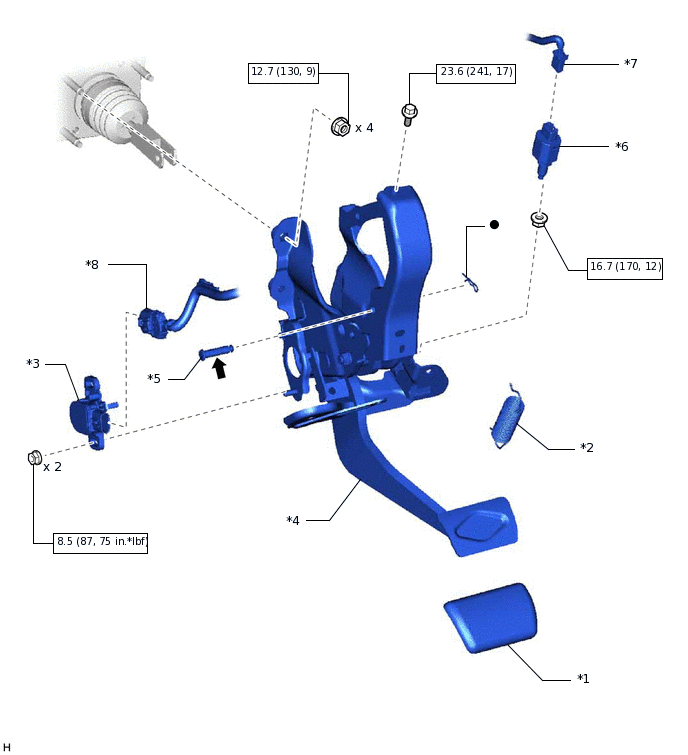

ILLUSTRATION
*1 |
BRAKE PEDAL PAD |
*2 |
BRAKE PEDAL RETURN SPRING |
*3 |
BRAKE PEDAL STROKE SENSOR ASSEMBLY |
*4 |
BRAKE PEDAL SUPPORT ASSEMBLY |
*5 |
PUSH ROD PIN |
*6 |
STOP LIGHT SWITCH ASSEMBLY |
*7 |
STOP LIGHT SWITCH CONNECTOR |
*8 |
BRAKE PEDAL STROKE SENSOR CONNECTOR |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
- |
- |
