IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION AND SERIAL NUMBERS


  1. VEHICLE IDENTIFICATION NUMBER

    Note

    The location of the imprinted vehicle identification number differs depending on the model code, as shown in the illustration.

    B0028PWC01
    *A for Single Cab *B for Smart Cab
    *C for Double Cab - -
    *1 Name Plate *2 Name Label
    *3 Identification Number Plate *4 Identification Number Information Label
    *5 Compliance Label - -
    *a Frame number - -

  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER


    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

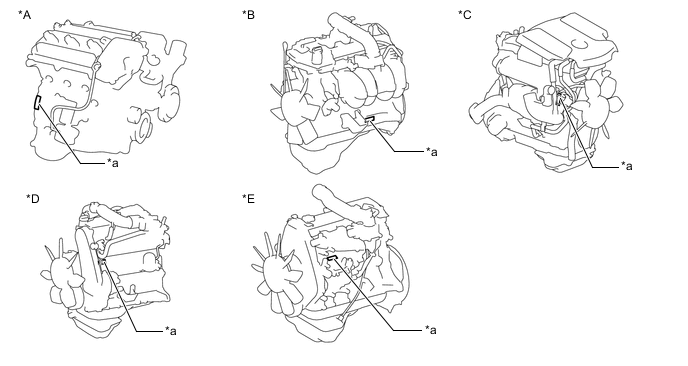

      1. Engine Serial Number

        B0028HRC01
        *A 1GR-FE *B 1TR-FE, 2TR-FE
        *C 1GD-FTV, 2GD-FTV *D 1KD-FTV, 2KD-FTV
        *E 5L-E - -
        *a Engine Serial Number - -

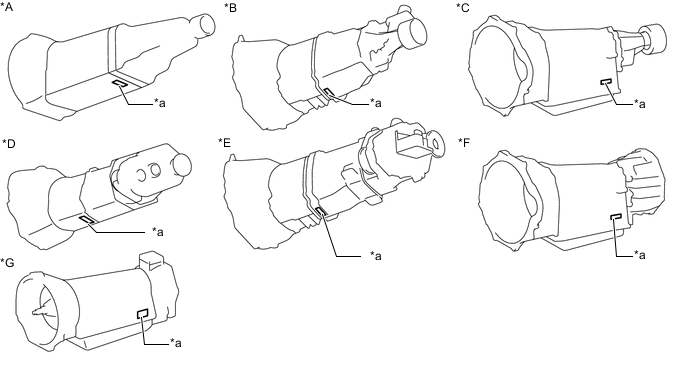

      2. Transmission Serial Number

        B0027VGC02
        *A R151 *B RC60, RC61
        *C AC60E *D R151F
        *E RC60F, RC61F *F AC60F
        *G A750F - -
        *a Transmission Serial Number - -
