REAR SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE NO. 1 SEAT LEG ASSEMBLY

    Click here

  6. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here

  7. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

  8. REMOVE REAR NO. 3 FLOOR BOARD

    Click here

  9. REMOVE REAR NO. 2 FLOOR BOARD

    Tip:

    Use the same procedure described for the rear No. 3 floor board side.

  10. REMOVE DECK TRIM SIDE COVER BASE LH

    Click here

  11. REMOVE DECK FLOOR BOX LH

    Click here

  12. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

  13. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

  14. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

  15. REMOVE REAR SEAT ASSEMBLY LH

    Click here

  16. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  17. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  18. REMOVE SEAT BELT ANCHOR COVER CAP

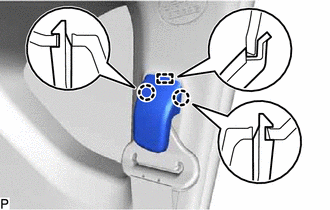

    B334909

    1. Using a screwdriver, detach the 2 claws and guide to remove the seat belt anchor cover cap.

      Tip:

      Tape the screwdriver tip before use.

  19. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

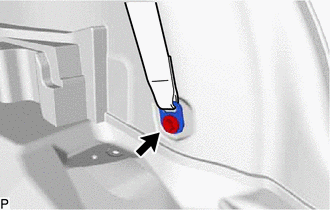

    1. B334910

      Remove the bolt and disconnect the floor anchor of the rear No. 1 seat outer belt assembly LH.

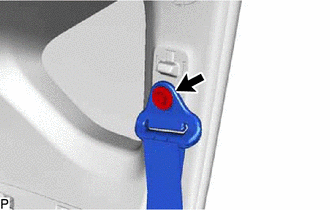

    2. B334911

      Remove the bolt and shoulder anchor of the rear No. 1 seat outer belt assembly LH.

  20. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  22. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Click here

  23. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

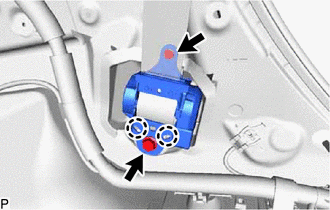

    1. B334912

      Remove the 2 bolts.

    2. Detach the 2 claws to remove the rear No. 1 seat outer belt assembly LH.

  24. REMOVE REAR SEAT BELT RETRACTOR COVER LH

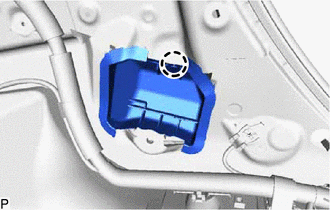

    1. B334913

      Detach the claw to remove the rear seat belt retractor cover LH.
