REAR DOOR COURTESY SWITCH INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

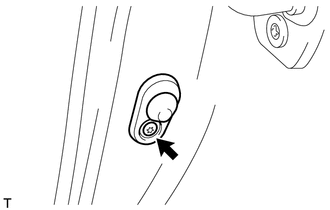

    1. E184209

      Connect the connector.

    2. Using a T30 "TORX" socket wrench, install the courtesy light switch with the screw.

      6.3 N*m

      64 kgf*cm

      56 in.*lbf
