OUTER REAR VIEW MIRROR GLASS INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. INSTALL OUTER MIRROR

    1. w/ Mirror Heater:

      1. Connect the connector.

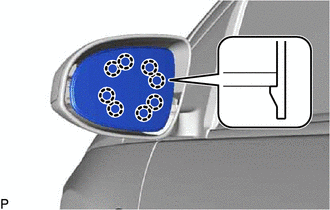

    2. B370086

      Engage the 8 claws to install the outer mirror.

      Note:

      Do not push in the outer mirror with excessive force. Doing so may break the mirror surface.
