LUGGAGE COMPARTMENT ROOM LIGHT REMOVAL

PROCEDURE

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

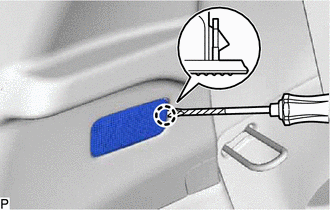

    1. E294092C01
      V100155

      Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.

  2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB

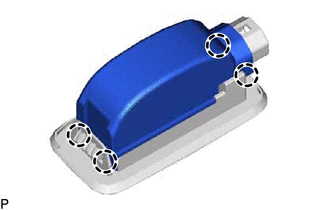

    1. E294094

      Using a screwdriver, disengage the 4 claws to remove the shade from the No. 1 luggage compartment light lens.

    2. Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens.
