TIRE PRESSURE WARNING RECEIVER REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE BATTERY SERVICE COVER

    Click here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

  5. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    Click here

  6. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

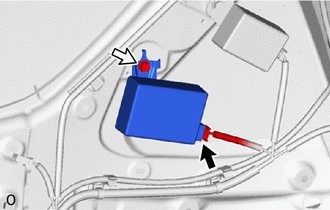

    1. C278885

      Disconnect the connector.

    2. Remove the bolt and tire pressure warning ECU and receiver.
