REAR SEAT INNER BELT ASSEMBLY REMOVAL

PROCEDURE

  1. REMOVE REAR SEAT ASSEMBLY LH

    Click here

  2. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

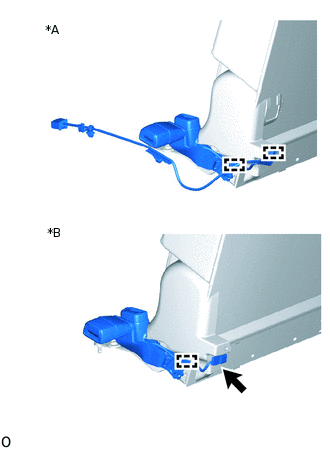

    1. B380240C01

      *A

      w/o Seat Heater System

      *B

      w/ Seat Heater System

      w/ Seat Belt Warning:

      1. w/o Seat Heater System:

        1. Using a clip remover, detach the 2 wire harness clamps.

      2. w/ Seat Heater System:

        1. Disconnect the connector.

        2. Using a clip remover, detach the wire harness clamp.

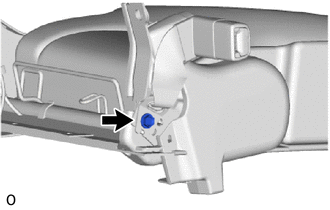

    2. B378700

      Remove the bolt.

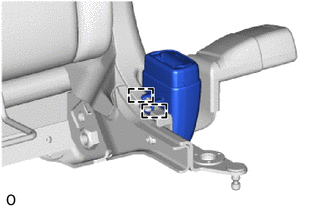

    3. B378701

      Detach the 2 hooks and remove the rear seat inner with center belt assembly RH.

  3. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

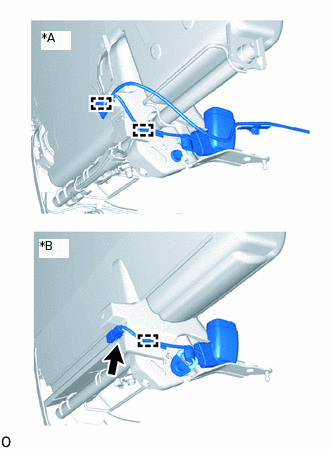

    1. B380241C01

      *A

      w/o Seat Heater System

      *B

      w/ Seat Heater System

      w/ Seat Belt Warning System:

      1. w/o Seat Heater System:

        1. Using a clip remover, detach the 2 wire harness clamps.

      2. w/ Seat Heater System:

        1. Disconnect the connector.

        2. Using a clip remover, detach the wire harness clamp.

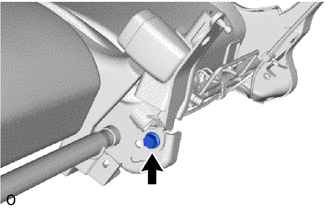

    2. B378702

      Remove the bolt.

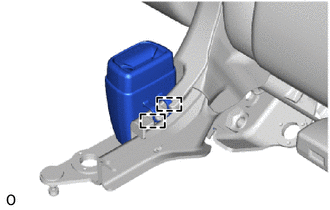

    3. B378703

      Detach the 2 hooks and remove the rear seat inner belt assembly LH.

  4. REMOVE REAR SEAT CENTER LAP TYPE BELT ASSEMBLY LH

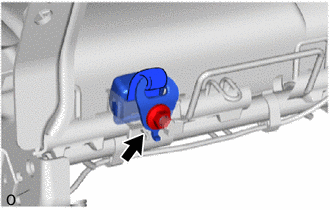

    1. B378704

      Remove the nut.

    2. Remove the rear seat center lap type belt assembly LH from the rear seat belt holder.
