CLUTCH MASTER CYLINDER REMOVAL

PROCEDURE

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)

  2. REMOVE BRAKE BOOSTER ASSEMBLY (for LHD)

    Click here

  3. DISCONNECT CLUTCH RESERVOIR TUBE

    1. Loosen the clip and disconnect the clutch reservoir tube from the clutch master cylinder assembly.

      Tip:

      Use a container to collect the fluid.

  4. DISCONNECT CLUTCH LINE

    C155081

    1. Using a 10 mm union nut wrench, disconnect the clutch line.

      Tip:

      Use a container to collect the fluid.

  5. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY (for LHD)

    1. C207390C01

      *A

      for 1ZR-FE, 1ZR-FAE, 1ND-TV, 8NR-FTS

      *B

      for 1NR-FE, 1WW

      Remove the clip from the clutch master cylinder push rod clevis with hole pin.

    2. Remove the clutch master cylinder push rod clevis with hole pin and disconnect the clutch master cylinder push rod clevis from the clutch pedal sub-assembly.

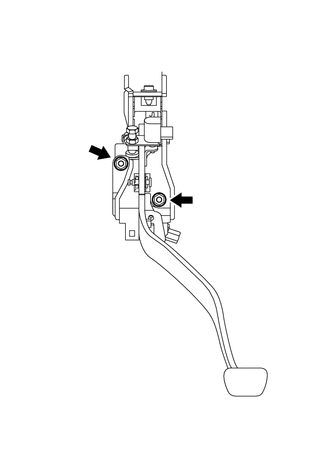

    3. C319142

      Remove the 2 nuts and clutch master cylinder assembly from the vehicle body.

    4. Remove the clutch master cylinder bracket from the clutch master cylinder assembly.

  6. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY (for RHD)

    1. C319134C01

      *A

      for 1ZR-FAE, 1ND-TV, 1NR-FE, 8NR-FTS

      *B

      for 1WW

      Push the clutch master cylinder push rod clevis upward and release it toward the left side of the vehicle.

    2. Remove the 2 nuts and clutch master cylinder assembly from the vehicle body.

      C276152C01

      *A

      for 1NR-FE

      *B

      except 1NR-FE

    3. Remove the clutch master cylinder bracket from the clutch master cylinder assembly.
