WIRELESS DOOR LOCK CONTROL SYSTEM GENERAL PARTS LOCATION

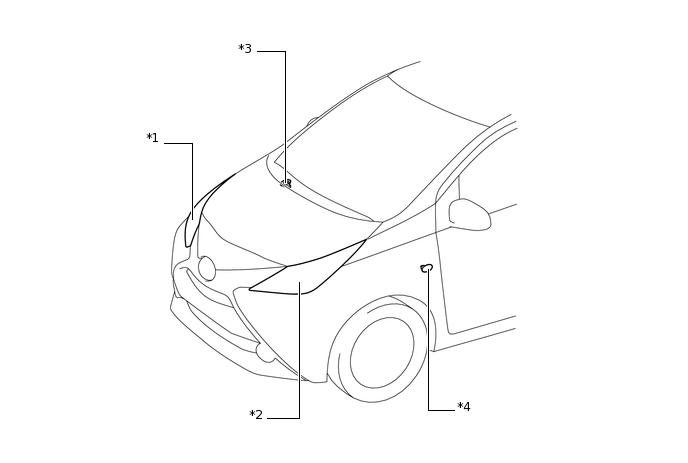

Y146536C01

*1

HEADLIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT

*2

HEADLIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*4

SIDE TURN SIGNAL LIGHT ASSEMBLY LH
Figure 1. 5-door LHD Models

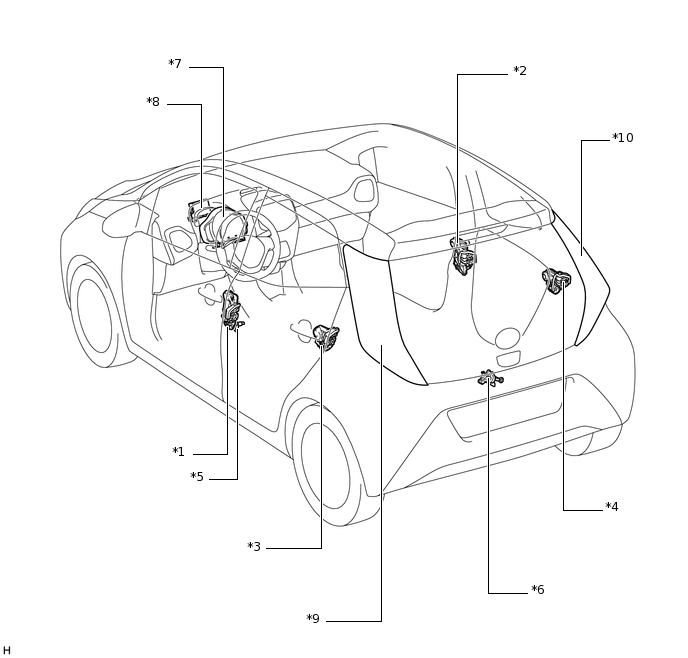

Y147102C01

*1

FRONT DOOR LOCK ASSEMBLY LH

*2

FRONT DOOR LOCK ASSEMBLY RH

*3

REAR DOOR LOCK ASSEMBLY LH

*4

REAR DOOR LOCK ASSEMBLY RH

*5

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)

*6

BACK DOOR LOCK ACTUATOR ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

DOOR CONTROL RECEIVER WITH ECU ASSEMBLY

*9

REAR COMBINATION LIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

*10

REAR COMBINATION LIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT
Figure 2. 5-door RHD Models

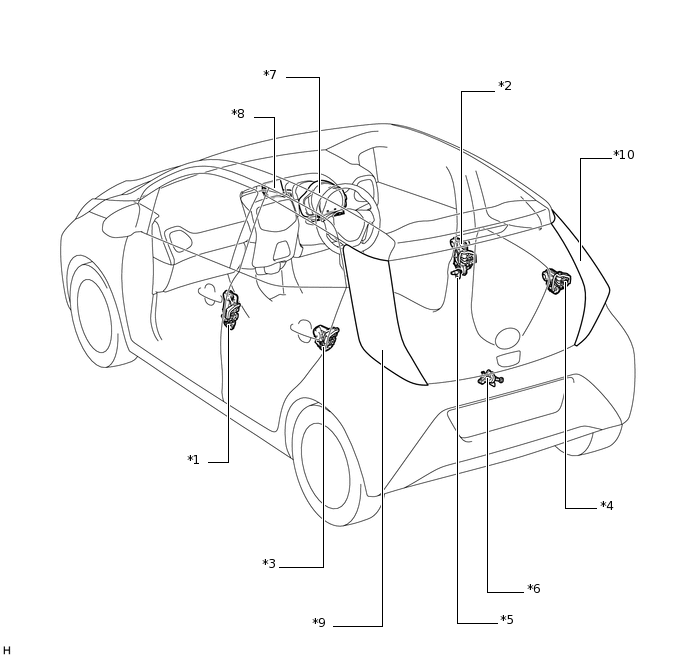

Y147103C01

*1

FRONT DOOR LOCK ASSEMBLY LH

*2

FRONT DOOR LOCK ASSEMBLY RH

*3

REAR DOOR LOCK ASSEMBLY LH

*4

REAR DOOR LOCK ASSEMBLY RH

*5

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)

*6

BACK DOOR LOCK ACTUATOR ASSEMBLY

*7

COMBINATION METER ASSEMBLY

*8

DOOR CONTROL RECEIVER WITH ECU ASSEMBLY

*9

REAR COMBINATION LIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

*10

REAR COMBINATION LIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT
Figure 3. 3-door LHD Models

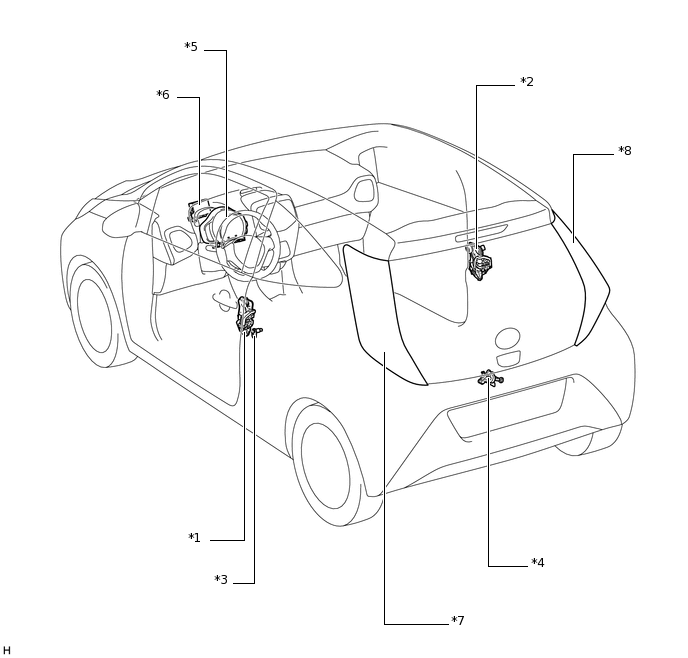

Y146517C01

*1

FRONT DOOR LOCK ASSEMBLY LH

*2

FRONT DOOR LOCK ASSEMBLY RH

*3

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)

*4

BACK DOOR LOCK ACTUATOR ASSEMBLY

*5

COMBINATION METER ASSEMBLY

*6

DOOR CONTROL RECEIVER WITH ECU ASSEMBLY

*7

REAR COMBINATION LIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

*8

REAR COMBINATION LIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT
Figure 4. 3-door RHD Models

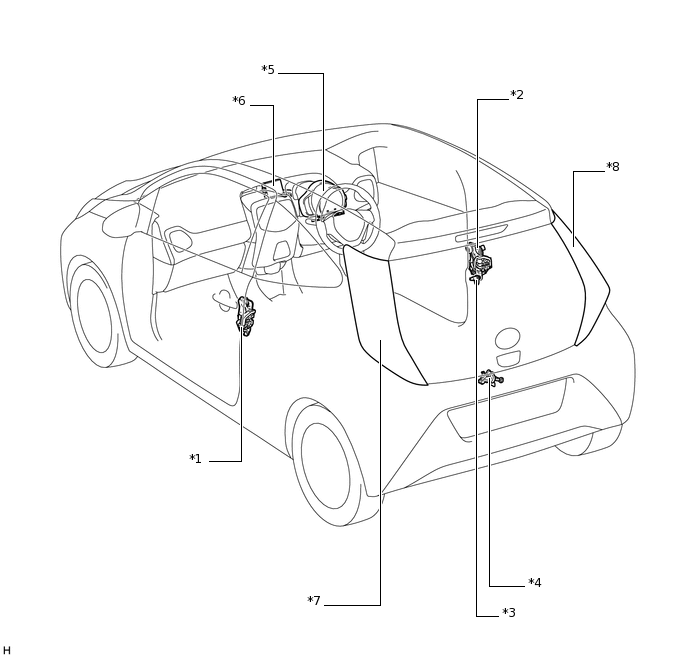

Y146518C01

*1

FRONT DOOR LOCK ASSEMBLY LH

*2

FRONT DOOR LOCK ASSEMBLY RH

*3

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)

*4

BACK DOOR LOCK ACTUATOR ASSEMBLY

*5

COMBINATION METER ASSEMBLY

*6

DOOR CONTROL RECEIVER WITH ECU ASSEMBLY

*7

REAR COMBINATION LIGHT ASSEMBLY LH

- TURN SIGNAL LIGHT

*8

REAR COMBINATION LIGHT ASSEMBLY RH

- TURN SIGNAL LIGHT
