HEADLIGHT ASSEMBLY(for Halogen Headlight) REASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL FRONT TURN SIGNAL LIGHT BULB

    E273986

    1. Install the front turn signal light bulb to the front turn signal light socket.

  2. INSTALL FRONT TURN SIGNAL LIGHT SOCKET

    1. E332599C01

      *a

      Matchmark

      *b

      Unlock Position Mark

      *c

      Lock Position Mark

      Align the matchmark of the front turn signal light socket to the unlock position mark, and then rotate the front turn signal light socket clockwise until the lock position mark to install the front turn signal light socket.

  3. INSTALL NO. 1 HEADLIGHT BULB

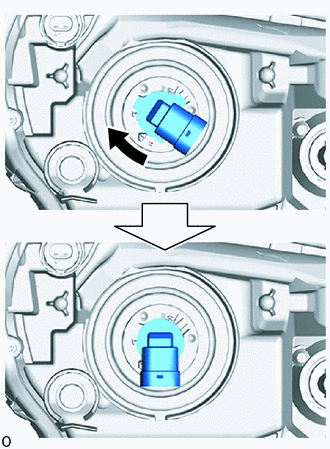

    1. E332597

      Set and turn the No. 1 headlight bulb clockwise to install it.

      Note:

      Do not touch the glass part of the bulb.
