FRONT SEAT SIDE AIRBAG ASSEMBLY(for Power Seat) COMPONENTS

*A	w/o Spare Tire, for Compact Spare Tire	*B	for Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	AUXILIARY BATTERY NEGATIVE TERMINAL	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

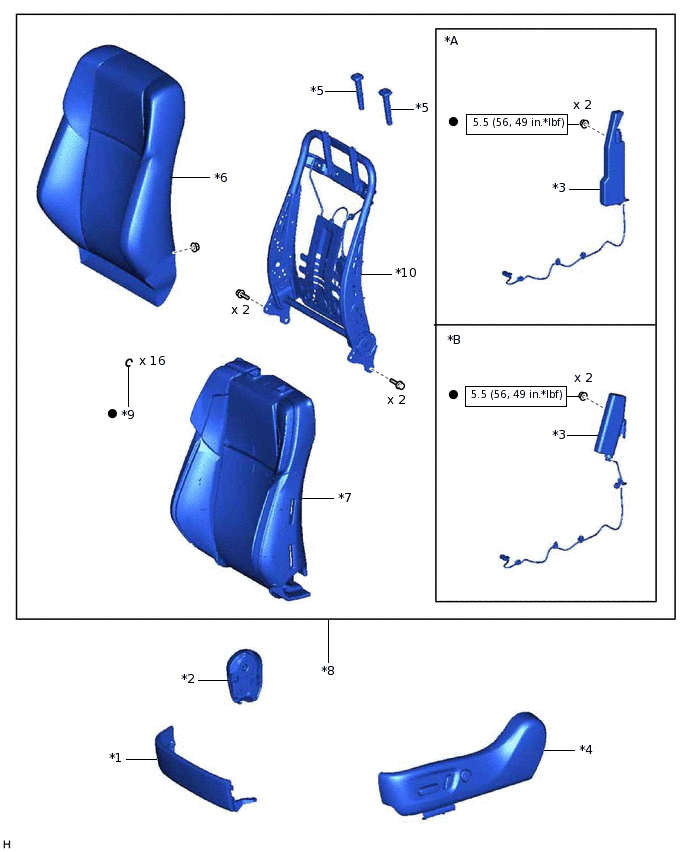

*A	for Dual Type	*B	for Single Type
*1	FRONT INNER NO. 1 SEAT CUSHION SHIELD LH	*2	FRONT INNER SEAT CUSHION SHIELD LH
*3	FRONT SEAT AIRBAG ASSEMBLY LH	*4	FRONT SEAT CUSHION SHIELD LH
*5	FRONT SEAT HEADREST SUPPORT	*6	SEPARATE TYPE FRONT SEATBACK COVER
*7	SEPARATE TYPE FRONT SEATBACK PAD	*8	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
*9	HOG RING	*10	FRONT SEATBACK FRAME SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf) : Specified torque	●	Non-reusable part

*A

for Dual Type

*B

for Single Type

*1

FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

*2

FRONT INNER SEAT CUSHION SHIELD LH

*3

FRONT SEAT AIRBAG ASSEMBLY LH

*4

FRONT SEAT CUSHION SHIELD LH

*5

FRONT SEAT HEADREST SUPPORT

*6

SEPARATE TYPE FRONT SEATBACK COVER

*7

SEPARATE TYPE FRONT SEATBACK PAD

*8

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*9

HOG RING

*10

FRONT SEATBACK FRAME SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf) : Specified torque

●

Non-reusable part
