VANITY LIGHT BULB REPLACEMENT

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. DISCONNECT VANITY LIGHT ASSEMBLY

    1. E314032C03

      *a

      Protective Tape

      Using a screwdriver, detach the claw and guide and disconnect the vanity light assembly.

      Tip:

      Tape the screwdriver tip before use.

  2. REMOVE VANITY LIGHT BULB

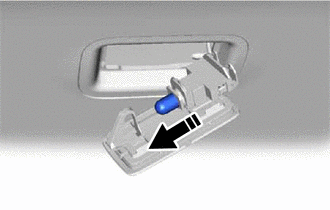

    1. E314012

      Remove the vanity light bulb from the vanity light bulb holder.

  3. INSTALL VANITY LIGHT BULB

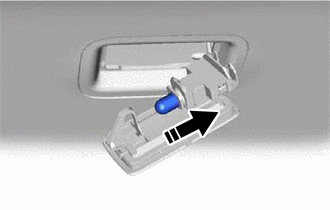

    1. E314013

      Install the vanity light bulb to the vanity light bulb holder.

  4. CONNECT VANITY LIGHT ASSEMBLY

    1. E314037

      Attach the guide and claw to connect the vanity light assembly.
