BATTERY BLOWER COMPONENTS
ILLUSTRATION

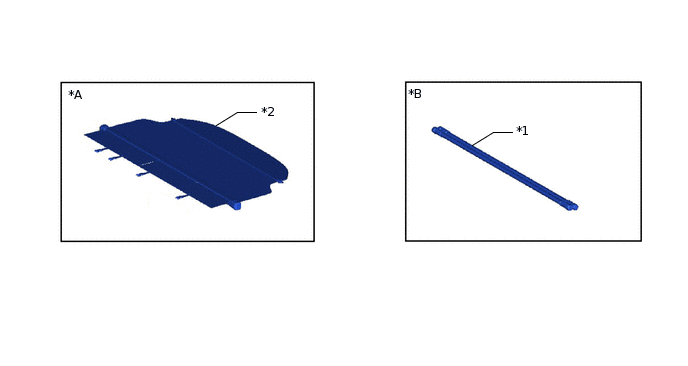

*A |
w/ Tonneau Cover |
*B |
w/ Partition Net |
*1 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*2 |
TONNEAU COVER ASSEMBLY |
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION

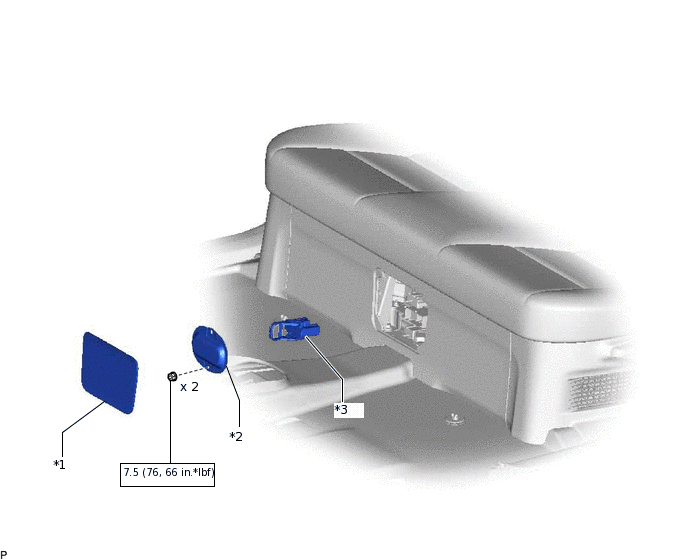

*1 |
BATTERY SERVICE HOLE COVER |
*2 |
HYBRID BATTERY SERVICE PLUG COVER |
*3 |
SERVICE PLUG GRIP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
CONNECTOR COVER ASSEMBLY |
*2 |
INVERTER RESERVE TANK ASSEMBLY |
*3 |
NO. 1 INVERTER RESERVE TANK BRACKET |
*4 |
WIRE HARNESS |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION

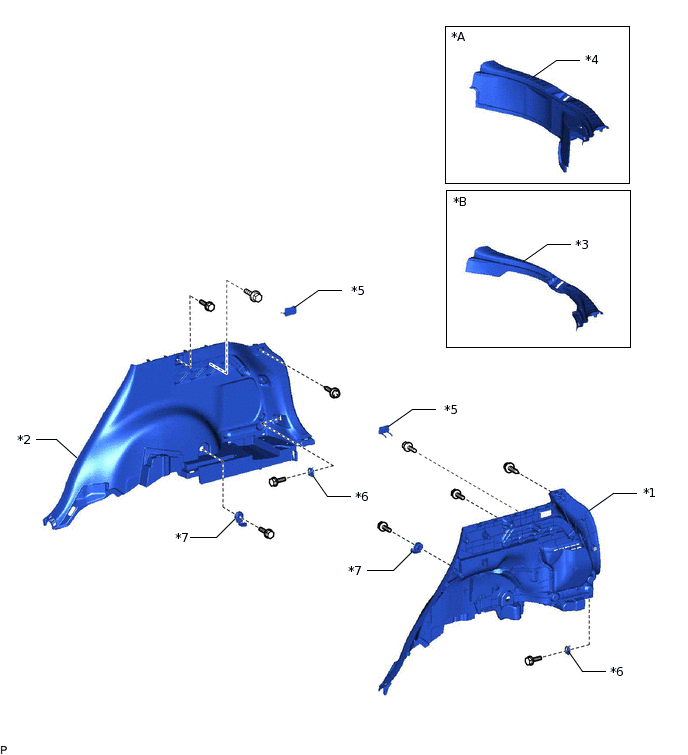

*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
*3 |
REAR DECK TRIM COVER |
*4 |
REAR FLOOR FINISH PLATE |
*5 |
DECK TRIM SERVICE HOLE COVER |
*6 |
TETHER ANCHOR SET BRACKET COVER |
*7 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |
ILLUSTRATION

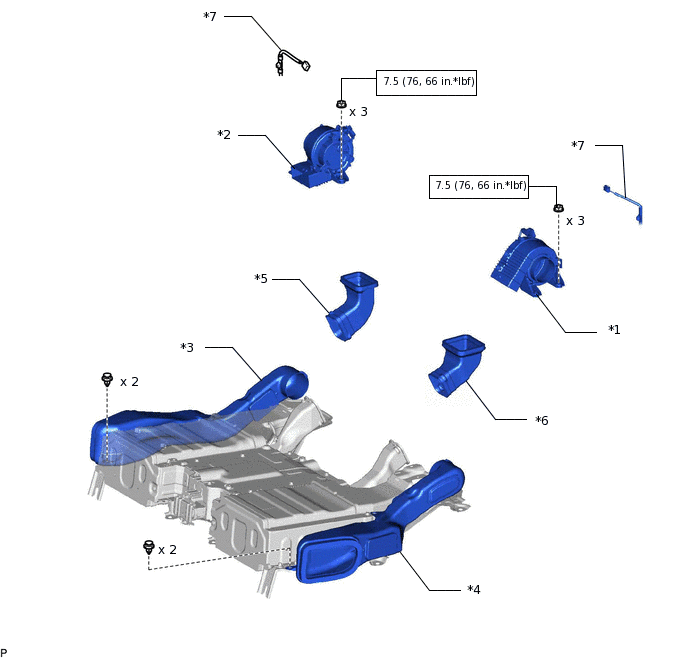

*1 |
BATTERY COOLING BLOWER ASSEMBLY LH |
*2 |
BATTERY COOLING BLOWER ASSEMBLY RH |
*3 |
NO. 1 EV BATTERY INTAKE DUCT |
*4 |
NO. 2 HYBRID BATTERY INTAKE DUCT |
*5 |
NO. 3 HYBRID BATTERY EXHAUST DUCT |
*6 |
NO. 4 HYBRID BATTERY EXHAUST DUCT |
*7 |
BATTERY COOLING BLOWER HARNESS |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
