СИСТЕМА СМАЗКИ


  1. CONSTRUCTION


    1. Oil nozzles have been provided in the cylinder block for cooling and lubricating the pistons.

    2. These oil nozzles contain a check valve to prevent oil from being fed when the oil pressure is low. This prevents the overall oil pressure in the engine from dropping

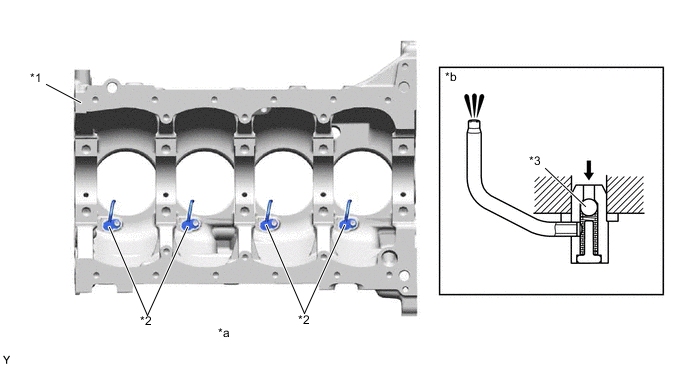

      A01KX8QC01
      *1 Cylinder Block Sub-assembly *2 No. 1 Oil Nozzle Sub-assembly
      *3 Check Valve - -
      *a Bottom View *b Oil Nozzle Cross Section
      B005L08 Oil Pressure - -
