CLUTCH RELEASE CYLINDER(for EA66) COMPONENTS
ILLUSTRATION
*1 |
NO. 1 ENGINE UNDER COVER |
- |
- |
ILLUSTRATION
*1 |
AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
BATTERY |
*4 |
BATTERY CLAMP SUB-ASSEMBLY |
*5 |
BATTERY TRAY |
*6 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*7 |
BATTERY CLAMP BOLT |
*8 |
BATTERY INSULATOR |
*9 |
BATTERY CARRIER |
*10 |
NO. 1 ENGINE COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

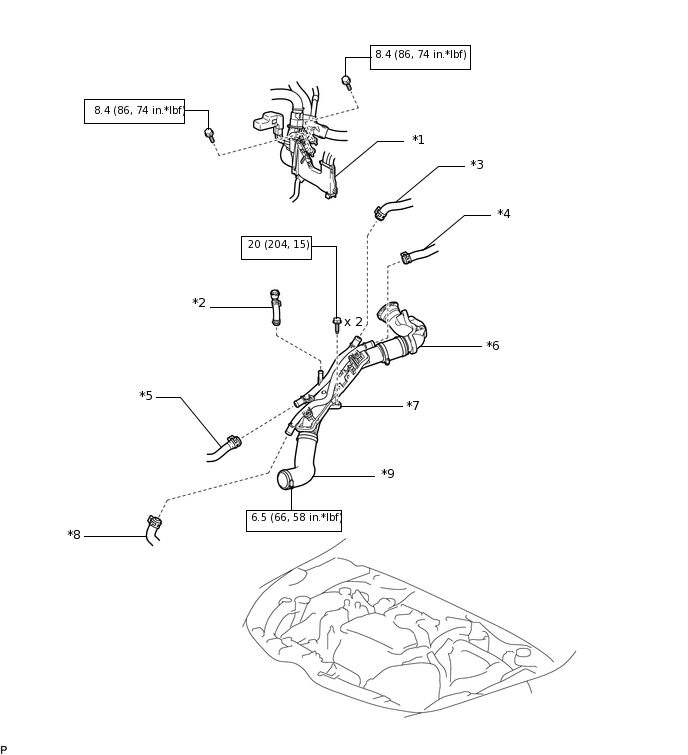

ILLUSTRATION
*1 |
ENGINE WIRE |
*2 |
NO. 4 WATER BY-PASS HOSE |
*3 |
OUTLET HEATER WATER HOSE |
*4 |
WATER HOSE SUB-ASSEMBLY |
*5 |
WATER BY-PASS HOSE ASSEMBLY |
*6 |
COMPRESSOR OUTLET ELBOW |
*7 |
NO. 1 AIR TUBE ASSEMBLY |
*8 |
RADIATOR HOSE SUB-ASSEMBLY |
*9 |
NO. 2 AIR HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

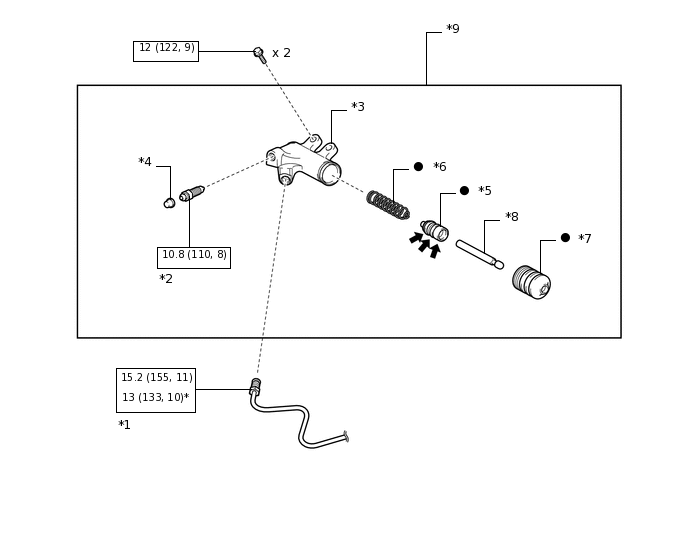

ILLUSTRATION
*1 |
CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE |
*2 |
RELEASE CYLINDER BLEEDER PLUG |
*3 |
CLUTCH RELEASE CYLINDER BODY |
*4 |
BLEEDER PLUG CAP |
*5 |
PISTON |
*6 |
SPRING |
*7 |
BOOT |
*8 |
PUSH ROD |
*9 |
CLUTCH RELEASE CYLINDER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with a union nut wrench |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
