WIRELESS DOOR LOCK CONTROL SYSTEM CONTROL WIRELESS DOOR LOCK CONTROL

  1. FUNCTION

    1. The wireless door lock control system has the following functions:

      Function

      Outline

      All Doors Lock

      Pressing the lock switch of the door control transmitter assembly locks the doors.

      All Doors Unlock

      Pressing the unlock switch of the door control transmitter assembly once unlocks all doors.

      Answer Back

      When the doors are being locked or unlocked using the door control transmitter assembly, the hazard warning lights blink once while locking and twice while unlocking. Also, the answer back function operates when the doors are locked by the automatic relock function.

  2. CONSTRUCTION

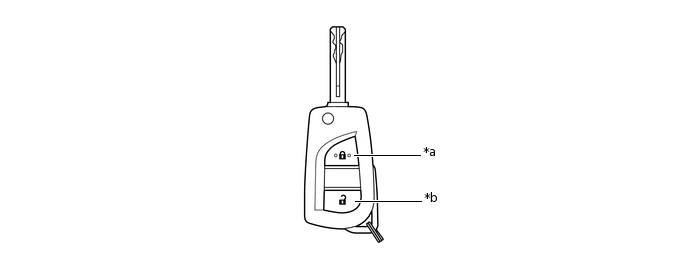

    1. Door Control Transmitter Assembly

      1. The door control transmitter assembly for wireless door lock control has a lock switch and unlock switch.

        Y147156C01

        *a

        Lock Switch

        *b

        Unlock Switch
