HYBRID TRANSAXLE OIL SEAL REPLACEMENT

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT

   Click hereClick here

2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

   1.

      *a	Hold
      	Turn

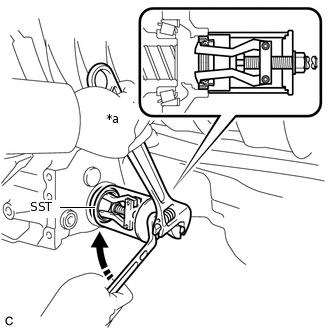

      Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

      09514-35011

3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

   1.

      *a	Hold
      	Turn

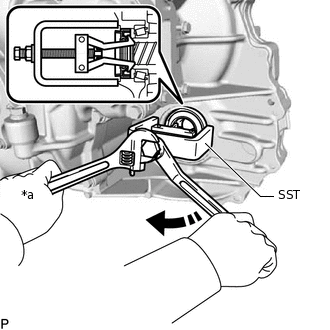

      Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

      09612-30012

4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

   1. Coat the outside edge of a new front drive shaft oil seal RH with ATF.

   2.

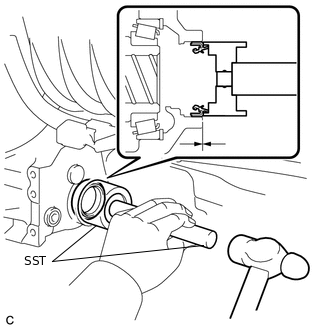

      Using SST and a hammer, install the front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

      09710-30050

      09950-70010

      09951-07150

      Oil Seal Installation Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0196 in.)

   3. Coat the lip of the front drive shaft oil seal RH with MP grease.

5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

   1. Coat the outside edge of a new front drive shaft oil seal LH with ATF.

   2.

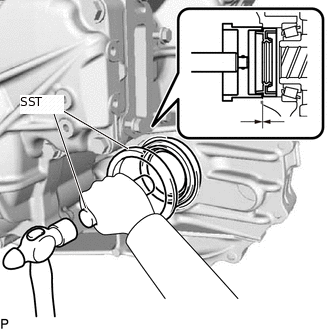

      Using SST and a hammer, install the front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

      09223-15020

      09950-70010

      09951-07150

      Oil Seal Installation Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0196 in.)

   3. Coat the lip of the front drive shaft oil seal LH with MP grease.

6. INSTALL FRONT DRIVE SHAFT

   Click hereClick here
