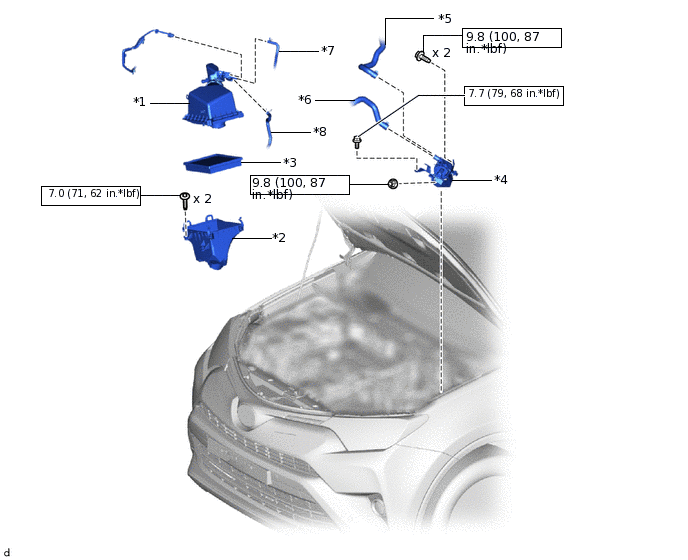

HEATER WATER PUMP COMPONENTS
ILLUSTRATION
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*4 |
HEATER ACCESSORY ASSEMBLY (HEATER WATER PUMP) |
*5 |
HEATER WATER INLET HOSE A |
*6 |
HEATER WATER OUTLET HOSE A |
*7 |
FUEL VAPOR FEED HOSE |
*8 |
NO. 2 FUEL VAPOR FEED HOSE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
