CLUTCH MASTER CYLINDER COMPONENTS

ILLUSTRATION

C275473C01

*A

w/ Instrument Panel Under Cover

*B

for LHD

*C

for RHD

-

-

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

ILLUSTRATION

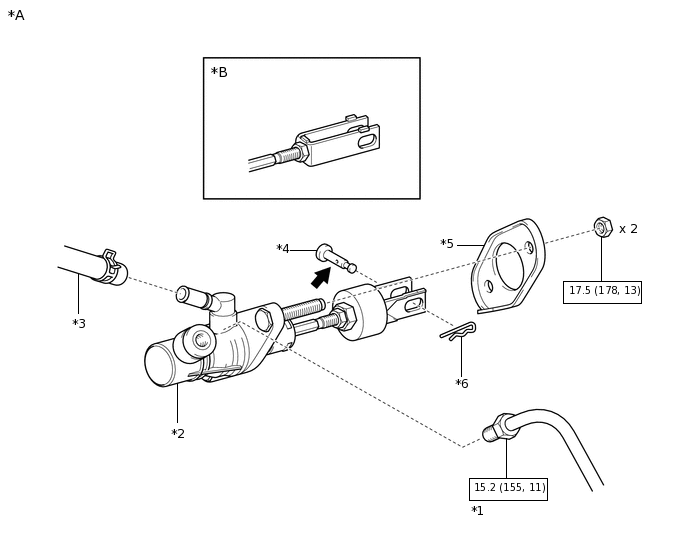

C274603C02

*A

for LHD

*B

for 1AD-FTV

*1

CLUTCH LINE

*2

CLUTCH MASTER CYLINDER ASSEMBLY

*3

CLUTCH RESERVOIR TUBE

*4

CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN

*5

CLUTCH MASTER CYLINDER BRACKET

*6

CLIP
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

 V100135

MP grease

ILLUSTRATION

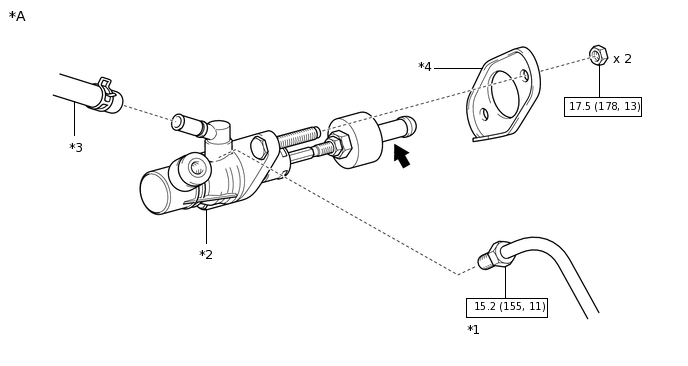

C274604C02

*A

for RHD

-

-

*1

CLUTCH LINE

*2

CLUTCH MASTER CYLINDER ASSEMBLY

*3

CLUTCH RESERVOIR TUBE

*4

CLUTCH MASTER CYLINDER BRACKET
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

 V100135

MP grease
