WIRELESS DOOR LOCK CONTROL SYSTEM

B002FHDC01
*A Except Models for China *B Models without Double Locking System
*C Models with Double Locking System *D Models without Power Back Door System
*E Models with Power Back Door System - -

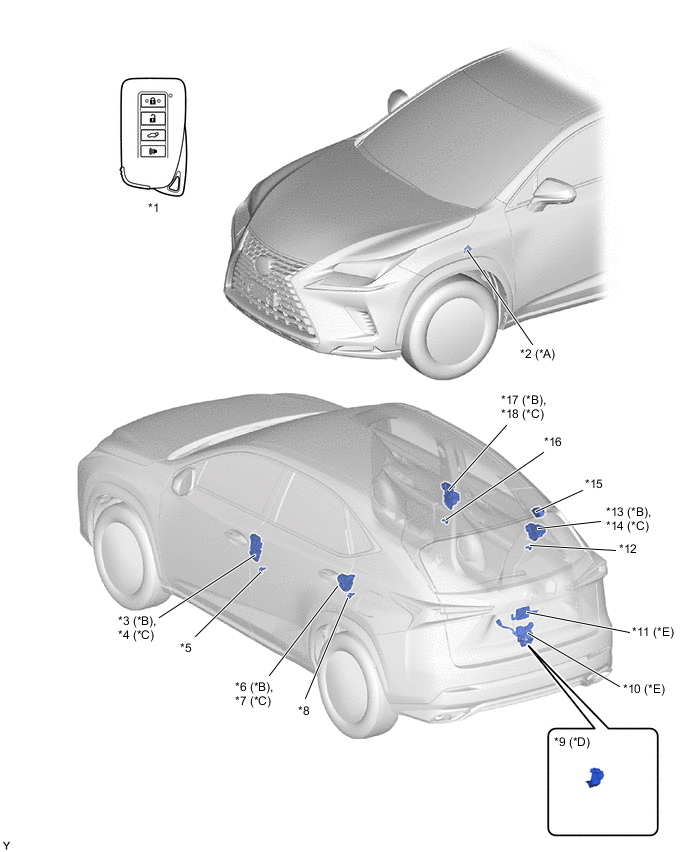

*1 Electrical Key Transmitter Sub-assembly *2 Wireless Door Lock Buzzer
*3

Front Door Lock Assembly LH


  • Door Lock Motor

  • Door Lock Position Switch

 *4

Front Door Lock Assembly LH


  • Door Lock Motor

  • Door Lock Position Switch

  • Double Lock Motor

  • Double Lock Position Switch
*5 Front Door Courtesy Light Switch Assembly LH *6

Rear Door Lock Assembly LH


  • Door Lock Motor

  • Door Lock Position Switch
*7

Rear Door Lock Assembly LH


  • Door Lock Motor

  • Door Lock Position Switch

  • Double Lock Motor

  • Double Lock Position Switch

 *8 Rear Door Courtesy Light Switch Assembly LH
*9

Back Door Lock Assembly


  • Back Door Lock Motor

  • Back Door Courtesy Light Switch

 *10

Back Door Lock Assembly


  • Back Door Closer Motor

  • Back Door Courtesy Light Switch
*11 Power Back Door ECU (Multiplex Network Door ECU) *12 Rear Door Courtesy Light Switch Assembly RH
*13

Rear Door Lock Assembly RH


  • Door Lock Motor

  • Door Lock Position Switch

 *14

Rear Door Lock Assembly RH


  • Door Lock Motor

  • Door Lock Position Switch

  • Double Lock Motor

  • Double Lock Position Switch
*15 Smart Door Control Receiver Assembly *16 Front Door Courtesy Light Switch Assembly RH
*17

Front Door Lock Assembly RH


  • Door Lock Motor

  • Door Lock Position Switch

 *18

Front Door Lock Assembly RH


  • Door Lock Motor

  • Door Lock Position Switch

  • Double Lock Motor

  • Double Lock Position Switch
B002FFVC01

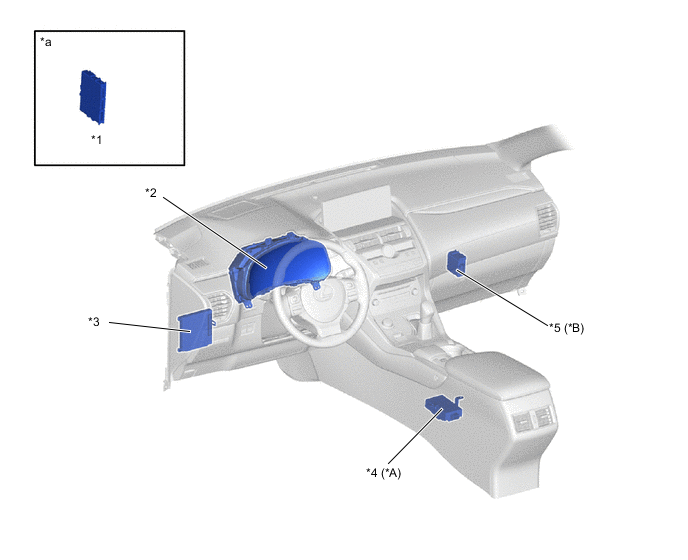

*A Except Models for China Models with Double Locking System
*1 Certification ECU (Smart Key ECU Assembly) *2 Combination Meter Assembly
*3 Main Body ECU (Multiplex Network Body ECU) *4 Door Control Battery
*5 Double Lock Door Control Relay Assembly -
*a Refer to the Service Bulletin for the installation position of the parts. -
