HV BATTERY COMPONENTS
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
BATTERY SERVICE HOLE COVER |
*2 |
HYBRID BATTERY SERVICE PLUG COVER |
*3 |
SERVICE PLUG GRIP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
CONNECTOR COVER ASSEMBLY |
*2 |
INVERTER RESERVE TANK ASSEMBLY |
*3 |
NO. 1 INVERTER RESERVE TANK BRACKET |
*4 |
WIRE HARNESS |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
*3 |
REAR DECK TRIM COVER |
*4 |
REAR FLOOR FINISH PLATE |
*5 |
DECK TRIM SERVICE HOLE COVER |
*6 |
TETHER ANCHOR SET BRACKET COVER |
*7 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |

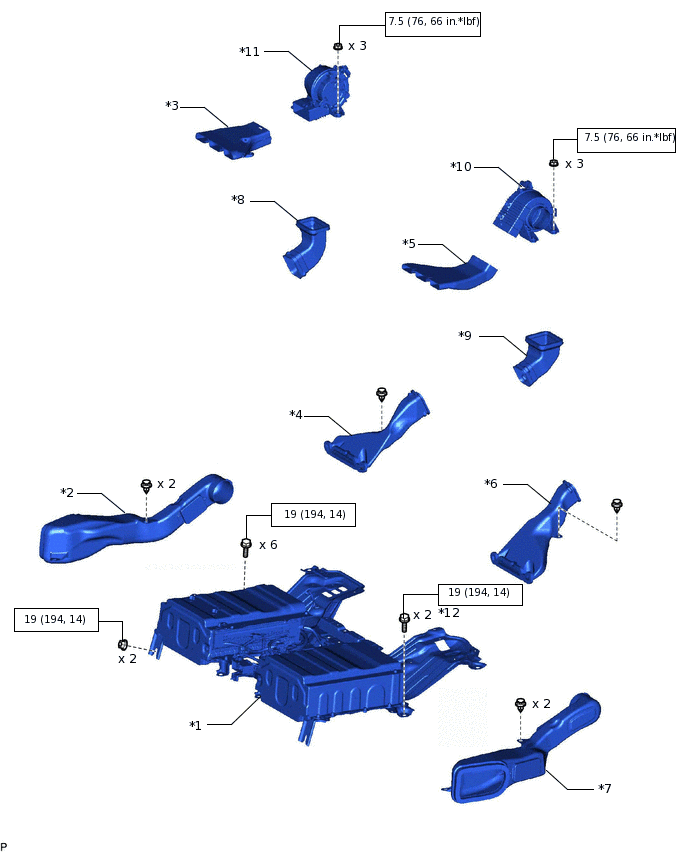

ILLUSTRATION
*1 |
HV BATTERY ASSEMBLY |
*2 |
NO. 1 EV BATTERY INTAKE DUCT |
*3 |
NO. 1 HYBRID BATTERY COVER INTAKE DUCT |
*4 |
NO. 1 HYBRID BATTERY EXHAUST DUCT |
*5 |
NO. 2 HYBRID BATTERY COVER INTAKE DUCT |
*6 |
NO. 2 HYBRID BATTERY EXHAUST DUCT |
*7 |
NO. 2 HYBRID BATTERY INTAKE DUCT |
*8 |
NO. 3 HYBRID BATTERY EXHAUST DUCT |
*9 |
NO. 4 HYBRID BATTERY EXHAUST DUCT |
*10 |
BATTERY COOLING BLOWER ASSEMBLY LH |
*11 |
BATTERY COOLING BLOWER ASSEMBLY RH |
*12 |
GROUND BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

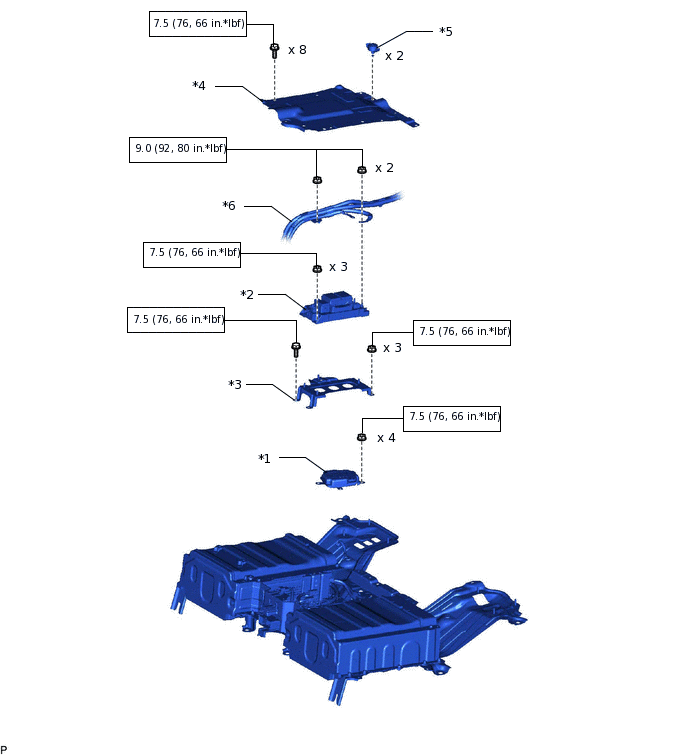

ILLUSTRATION
*1 |
BATTERY VOLTAGE SENSOR |
*2 |
HV BATTERY JUNCTION BLOCK ASSEMBLY |
*3 |
LOWER NO. 2 HYBRID BATTERY CARRIER PATCH |
*4 |
NO. 2 HYBRID VEHICLE BATTERY SHIELD REINFORCEMENT |
*5 |
BATTERY COVER LOCK STRIKER |
*6 |
NO. 5 FLOOR WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

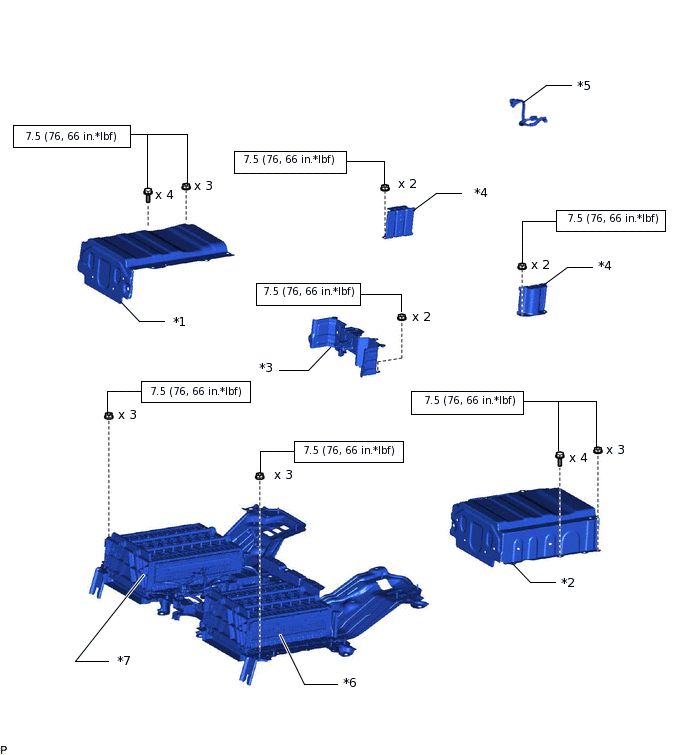

ILLUSTRATION
*1 |
HYBRID BATTERY COVER SUB-ASSEMBLY RH |
*2 |
HYBRID BATTERY COVER SUB-ASSEMBLY LH |
*3 |
NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY |
*4 |
NO. 1 HYBRID VEHICLE BATTERY CARRIER BRACKET SUB-ASSEMBLY |
*5 |
NO. 2 HYBRID BATTERY PACK WIRE |
*6 |
HYBRID BATTERY STACK (LH) |
*7 |
HYBRID BATTERY STACK (RH) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
