THROTTLE BODY COMPONENTS

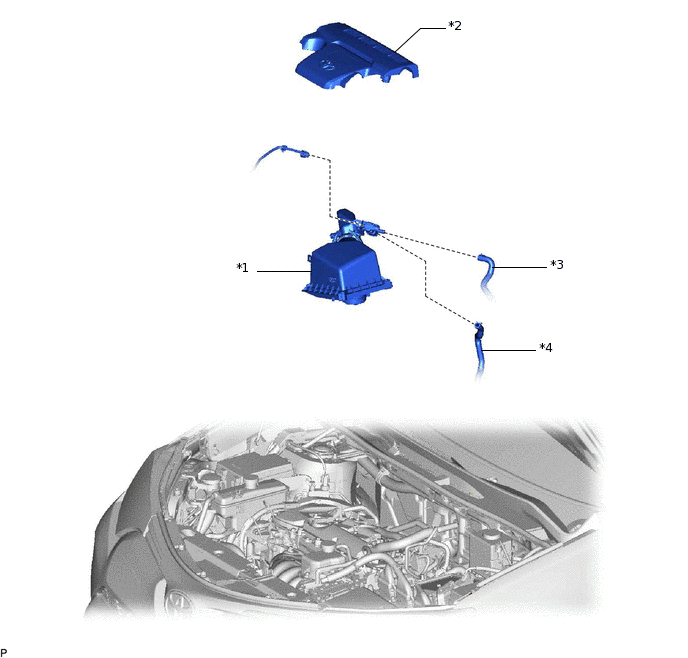

ILLUSTRATION
*1 |
AIR CLEANER CAP AND HOSE |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*3 |
FUEL VAPOR FEED HOSE |
*4 |
NO. 2 FUEL VAPOR FEED HOSE |

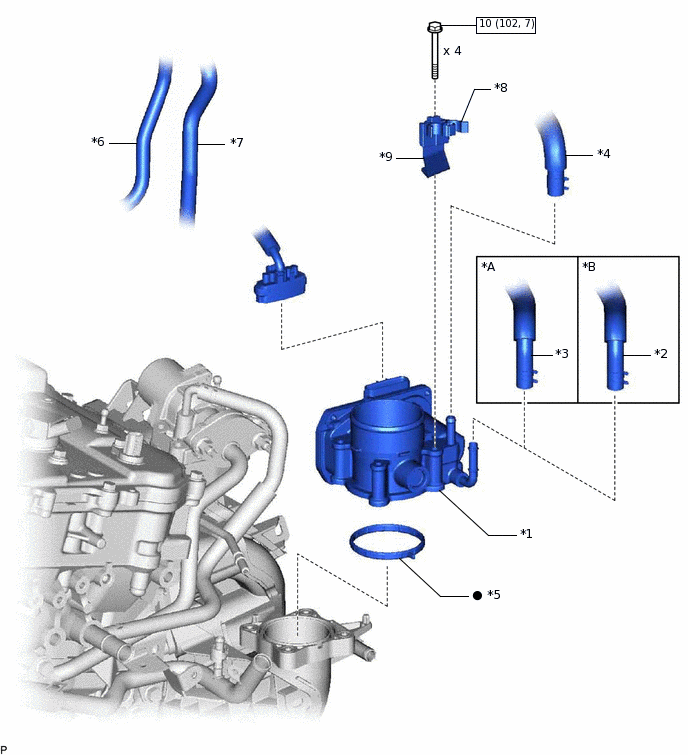

ILLUSTRATION
*A |
w/ EGR System |
*B |
w/o EGR System |
*1 |
THROTTLE WITH MOTOR BODY ASSEMBLY |
*2 |
NO. 1 WATER BY-PASS HOSE |
*3 |
NO. 2 WATER BY-PASS HOSE |
*4 |
NO. 3 WATER BY-PASS HOSE |
*5 |
GASKET |
*6 |
FUEL TUBE SUB-ASSEMBLY |
*7 |
NO. 2 FUEL VAPOR FEED HOSE |
*8 |
FUEL HOSE CLAMP |
*9 |
FUEL HOSE BRACKET |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
