FRAME WIRE COMPONENTS

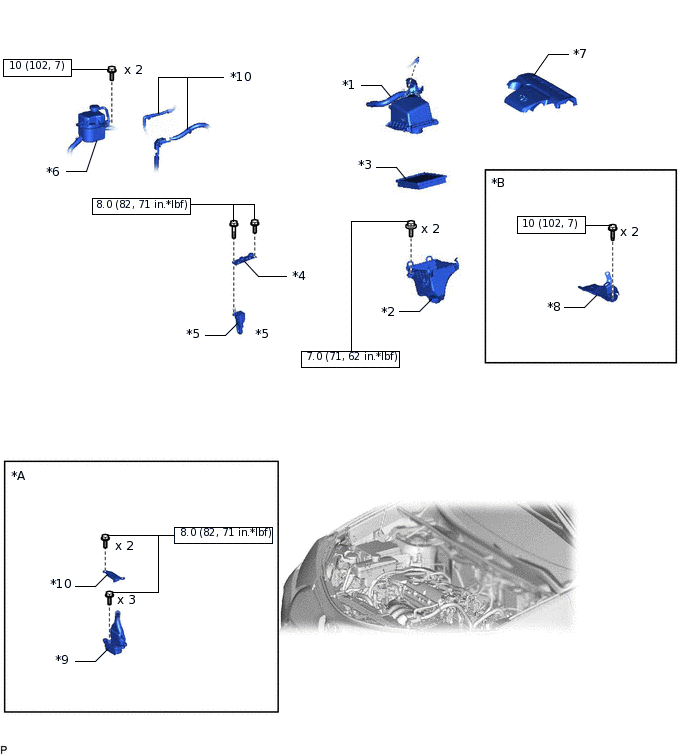

ILLUSTRATION
*A |
for AWD |
*B |
for 2WD |
*1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
*3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*4 |
CONNECTOR COVER ASSEMBLY |
*5 |
ENGINE WIRE |
*6 |
INVERTER RESERVE TANK ASSEMBLY |
*7 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*8 |
NO. 1 INVERTER RESERVE TANK BRACKET |
*9 |
NO. 5 FLOOR WIRE |
*10 |
WIRE HARNESS |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

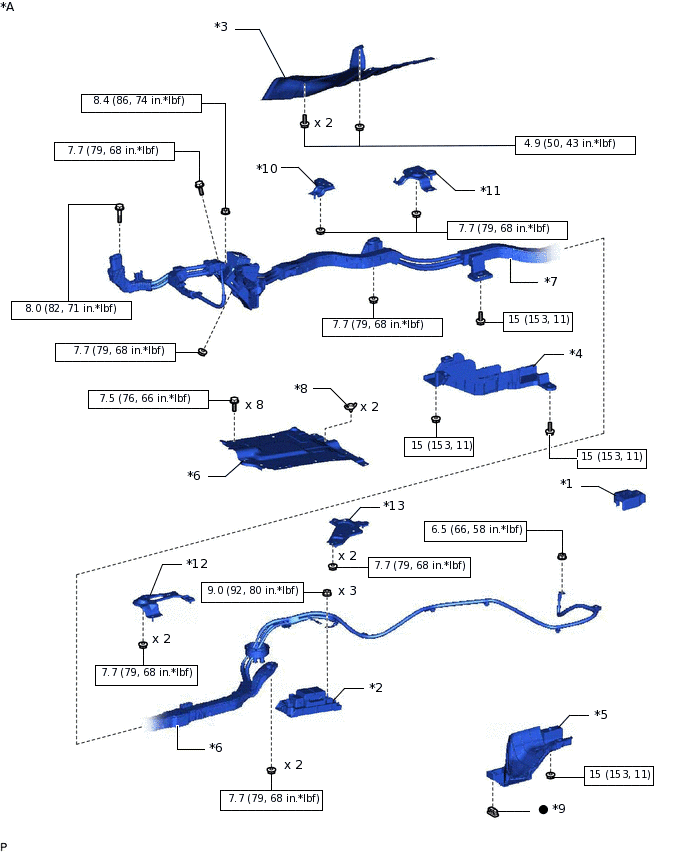

ILLUSTRATION
*A |
for AWD |
- |
- |
*1 |
BATTERY TERMINAL CONNECTOR COVER |
*2 |
HV BATTERY JUNCTION BLOCK ASSEMBLY |
*3 |
NO. 1 FRONT LOWER FLOOR HEAT INSULATOR |
*4 |
NO. 13 WIRING HARNESS PROTECTOR |
*5 |
NO. 14 WIRING HARNESS PROTECTOR |
*6 |
NO. 2 HYBRID VEHICLE BATTERY SHIELD REINFORCEMENT |
*7 |
NO. 5 FLOOR WIRE |
*8 |
BATTERY COVER LOCK STRIKER |
*9 |
STUD CLAMP |
*10 |
WIRE HARNESS CLAMP BRACKET A |
*11 |
WIRE HARNESS CLAMP BRACKET B |
*12 |
WIRE HARNESS CLAMP BRACKET C |
*13 |
WIRE HARNESS CLAMP BRACKET D |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

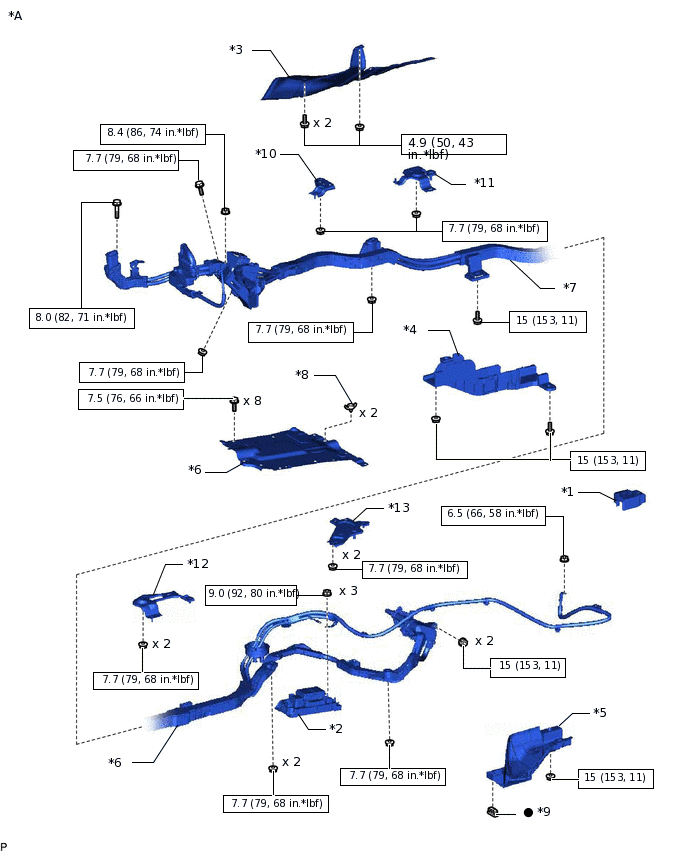

ILLUSTRATION
*A |
for 2WD |
- |
- |
*1 |
BATTERY TERMINAL CONNECTOR COVER |
*2 |
HV BATTERY JUNCTION BLOCK ASSEMBLY |
*3 |
NO. 1 FRONT LOWER FLOOR HEAT INSULATOR |
*4 |
NO. 13 WIRING HARNESS PROTECTOR |
*5 |
NO. 14 WIRING HARNESS PROTECTOR |
*6 |
NO. 2 HYBRID VEHICLE BATTERY SHIELD REINFORCEMENT |
*7 |
NO. 5 FLOOR WIRE |
*8 |
BATTERY COVER LOCK STRIKER |
*9 |
STUD CLAMP |
*10 |
WIRE HARNESS CLAMP BRACKET A |
*11 |
WIRE HARNESS CLAMP BRACKET B |
*12 |
WIRE HARNESS CLAMP BRACKET C |
*13 |
WIRE HARNESS CLAMP BRACKET D |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
