WIPER SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the RH side.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

  6. REMOVE LOWER NO. 2 STEERING WHEEL COVER

    Click here

  7. REMOVE STEERING PAD ASSEMBLY

    Click here

  8. REMOVE STEERING WHEEL ASSEMBLY

    Click here

  9. REMOVE STEERING COLUMN COVER

    Click here

  10. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

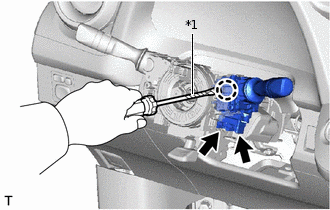

    1. E268398C01

      *1

      Protective Tape

      Disconnect the 2 connectors.

    2. Using a screwdriver, detach the claw and remove the windshield wiper switch assembly.

      Note:

      Do not push the claw with excessive force as damage may occur.

      Tip:

      Tape the screwdriver tip before use.
