THROTTLE BODY REMOVAL

PROCEDURE

  1. DRAIN ENGINE COOLANT

    Click here

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Click here

  3. REMOVE AIR CLEANER CAP AND HOSE

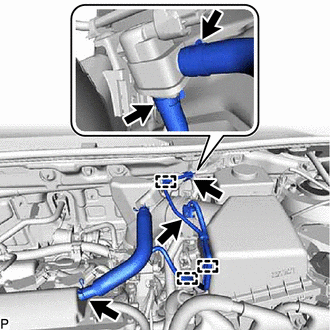

    1. A369663

      Disconnect the mass air flow meter sub-assembly connector.

    2. Slide the clamp and disconnect the ventilation hose assembly from the cylinder head cover sub-assembly.

    3. Disconnect the purge valve connector.

    4. Slide the 2 clamps and disconnect the fuel vapor feed hose and No. 2 fuel vapor feed hose from the purge valve.

    5. Detach the 3 wire harness clamps.

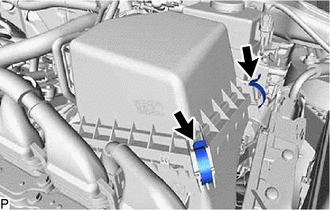

    6. A369664

      Detach the 2 clamps and remove the air cleaner cap sub-assembly from the air cleaner case.

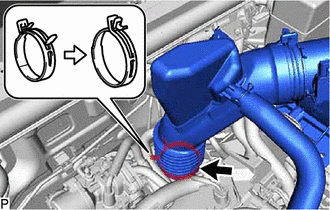

    7. A369665

      Lock the hose clamp and disconnect the air cleaner cap and hose from the throttle with motor body assembly.

  4. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

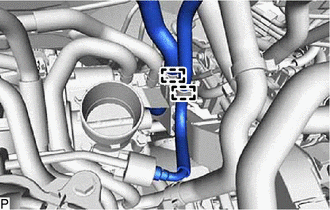

    1. A369666

      Disconnect the fuel tube sub-assembly and No. 2 fuel vapor feed hose from the fuel hose clamp.

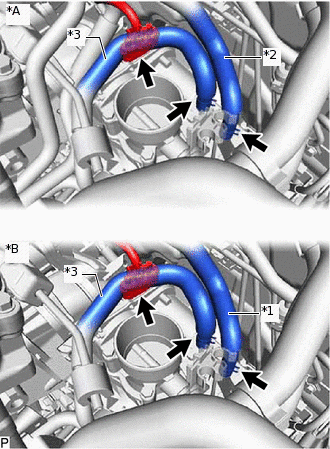

    2. A330899C01

      *A

      w/ EGR System

      *B

      w/o EGR System

      *1

      No. 1 Water By-pass Hose

      *2

      No. 2 Water By-pass Hose

      *3

      No. 3 Water By-pass Hose

      Disconnect the throttle with motor body assembly connector.

    3. w/ EGR System:

      Slide the 2 clamps and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle with motor body assembly.

    4. w/o EGR System:

      Slide the 2 clamps and disconnect the No. 1 water by-pass hose and No. 3 water by-pass hose from the throttle with motor body assembly.

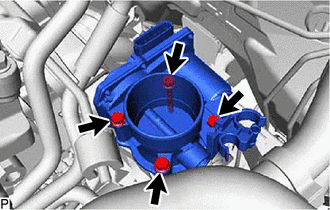

    5. A369668

      Remove the 4 bolts, fuel hose bracket and throttle with motor body assembly.

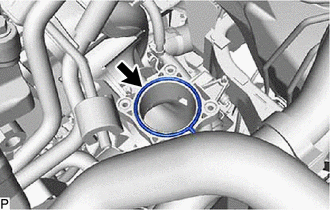

    6. A369669

      Remove the gasket from the intake manifold.
