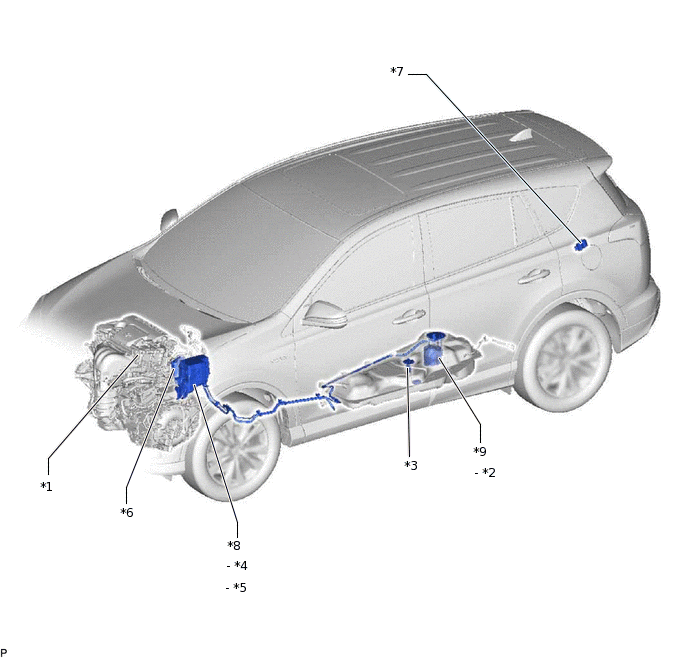

FUEL SYSTEM(w/ Canister Pump Module) PARTS LOCATION

*1	FUEL INJECTOR ASSEMBLY	*2	FUEL PUMP
*3	FUEL SENDER GAUGE ASSEMBLY	*4	EFI MAIN RELAY (EFI-MAIN)
*5	A/F RELAY (A/F)	*6	ECM
*7	FUEL PUMP CONTROL ECU ASSEMBLY	*8	NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - IG2 FUSE - EFI-MAIN FUSE - A/F FUSE - EFI NO.2 FUSE
*9	FUEL SUCTION TUBE ASSEMBLY	-	-

*1

FUEL INJECTOR ASSEMBLY

*2

FUEL PUMP

*3

FUEL SENDER GAUGE ASSEMBLY

*4

EFI MAIN RELAY (EFI-MAIN)

*5

A/F RELAY (A/F)

*6

ECM

*7

FUEL PUMP CONTROL ECU ASSEMBLY

*8

NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- IG2 FUSE

- EFI-MAIN FUSE

- A/F FUSE

- EFI NO.2 FUSE

*9

FUEL SUCTION TUBE ASSEMBLY

-
