WASHER MOTOR INSTALLATION

PROCEDURE

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY (w/ Headlight Cleaner System)

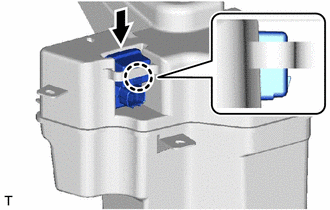

    E268378

    1. Attach the claw to install the headlight cleaner control relay.

  2. INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY (w/ Headlight Cleaner System)

    E268379

    1. Install the headlight cleaner motor and pump.

  3. INSTALL LEVEL WARNING SWITCH ASSEMBLY

    1. Install the level warning switch assembly.

  4. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

    1. w/ Headlight Cleaner System:

      1. Attach the guide to install the windshield washer jar assembly with the 3 bolts.

        5.0 N*m

        51 kgf*cm

        44 in.*lbf

        E268374C01

        *a

        Guid

        -

        -

      2. Connect the 3 connectors.

      3. Attach the 6 clamps

    2. w/o Headlight Cleaner System:

      1. Attach the guide to install the windshield washer jar assembly with the 3 bolts.

        5.0 N*m

        51 kgf*cm

        44 in.*lbf

        B427694C01

        *a

        Guid

        -

        -
        V100135

        Bolt

        		 V100136

        Connector

      2. Connect the connector.

      3. Attach the 6 clamps

  5. INSTALL WASHER INLET SUB-ASSEMBLY

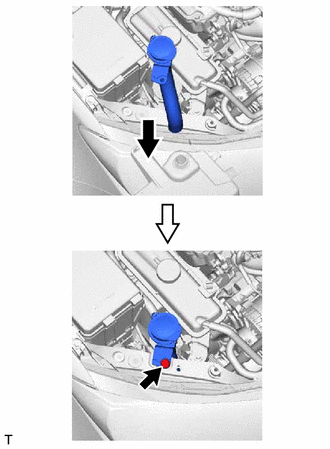

    1. E268381

      Install the washer inlet to the windshield washer jar and pump assembly.

    2. Install the clip.

  6. INSTALL FRONT BUMPER COVER

    Click here

  7. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

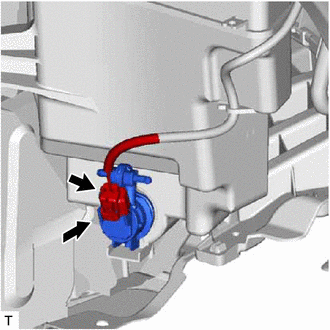

    1. E268382

      Install the windshield washer motor and pump assembly to the packing of the windshield washer jar assembly.

    2. Connect the connector.

  8. FILL UP WINDSHIELD WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID

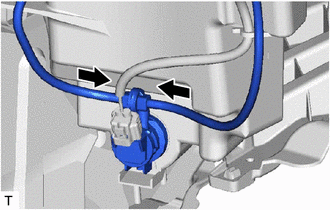

    E268383

    1. Connect the 2 washer hoses to the windshield washer motor and pump, and fill the washer jar with washer fluid.

  9. INSTALL FRONT FENDER LINER RH

    1. B427878

      Install the front fender liner RH with the 6 clips.

    2. B427879

      Install the new 4 grommets.

    3. B427876

      Install the 2 screws.

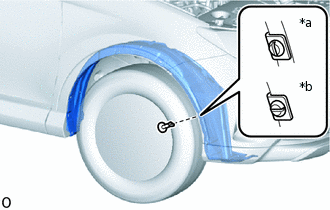

    4. B427952C01

      *a

      Correct

      *b

      Incorrect

      Install the pin hold clip and screw.

      Tip:

      Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is vertical.

  10. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH

    Tip:

    Use the same procedure described for the LH side.

    Click here
