REAR SEATBACK HEATER(for 60/40 Split Seat Type LH Side) INSPECTION

PROCEDURE


  1. INSPECT REAR SEATBACK HEATER (SEPARATE TYPE REAR SEATBACK COVER (for LH Side))

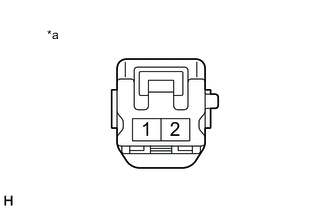

    1. A01RB8NC02
      *a

      Component without harness connected

      (Rear Seatback Heater (Separate Type Rear Seatback Cover (for LH Side)))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Seat heatertemperature 20 °C (68 °F) 3.98 to 4.78 Ω

      If the result is not as specified, replace the rear seatback heater (separate type rear seatback cover (for LH side)).
