POWER DOOR LOCK CONTROL SYSTEM
Figure 1. LHD Models
| *A | Models with 8AR-FTS Engine | *B | Models with 2GR-FKS Engine |
| *C | Models with Power Back Door System | *D | Models without Power Back Door System |
| *1 | ECM | *2 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | POWER WINDOW REGULATOR SWITCH ASSEMBLY (DOOR CONTROL SWITCH) |
| *5 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH | *6 | REAR DOOR LOCK ASSEMBLY RH |
| *7 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH) | *8 | REAR DOOR LOCK ASSEMBLY LH |
| *9 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *10 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *11 | POWER BACK DOOR ECU (MULTIPLEX NETWORK DOOR ECU) | *12 | BACK DOOR LOCK ASSEMBLY |
| *13 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | - | - |
| *a | Door Lock Switch | *b | Door Unlock Switch |

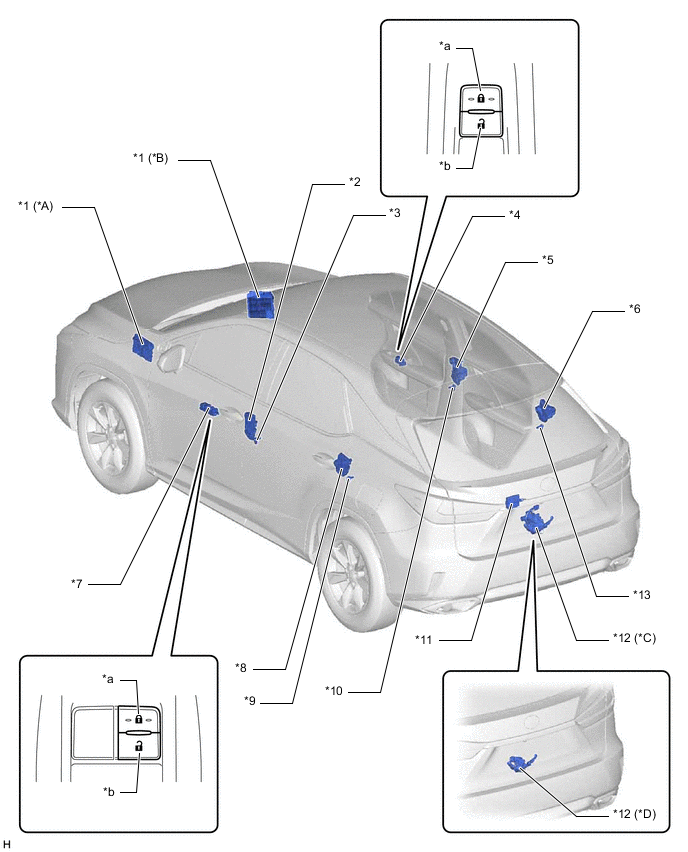

Figure 2. RHD Models
| *A | Models with 8AR-FTS Engine | *B | Models with 2GR-FKS Engine |
| *C | Models with Power Back Door System | *D | Models without Power Back Door System |
| *1 | ECM | *2 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH) |
| *5 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH | *6 | REAR DOOR LOCK ASSEMBLY RH |
| *7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY (DOOR CONTROL SWITCH) | *8 | REAR DOOR LOCK ASSEMBLY LH |
| *9 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *10 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *11 | POWER BACK DOOR ECU (MULTIPLEX NETWORK DOOR ECU) | *12 | BACK DOOR LOCK ASSEMBLY |
| *13 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | - | - |
| *a | Door Lock Switch | *b | Door Unlock Switch |

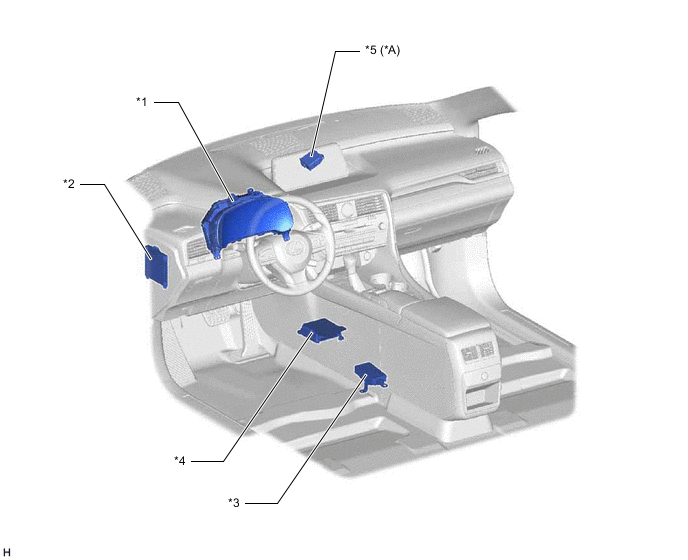

Figure 3. LHD Models
| *A | Models with Double Locking System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | DOOR CONTROL BATTERY | *4 | AIRBAG ECU ASSEMBLY |
| *5 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | - | - |

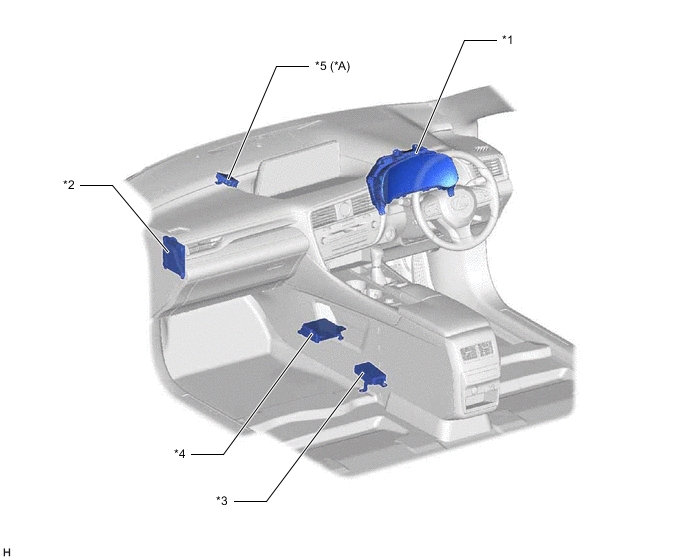

Figure 4. RHD Models
| *A | Models with Double Locking System | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | DOOR CONTROL BATTERY | *4 | AIRBAG ECU ASSEMBLY |
| *5 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | - | - |
